115 Cu Ft Blentech Model TP28133X Jacketed Dual Shaft Scrape Double Ribbon Mixer
| Loeb # | 70843 | Model | TP28133X |
|---|---|---|---|
| OEM | Blentech Corp | ||
| Year | 1991 | Serial | 91527 |
| Electrical | 3/230/460/60 | Location | Illinois |
| Condition | Running | Size | 115.00 |
| Lease for only | 1,184.84 / mo. | Rent for only | N/A |

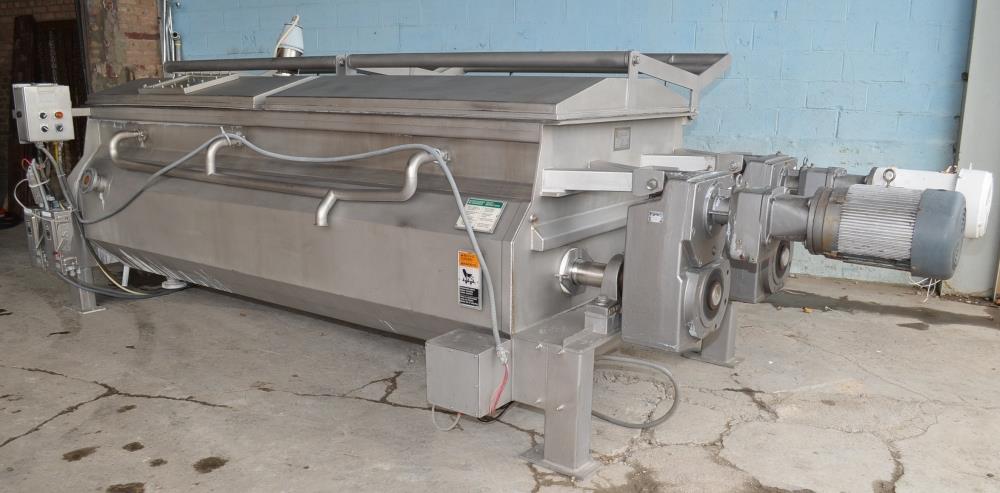

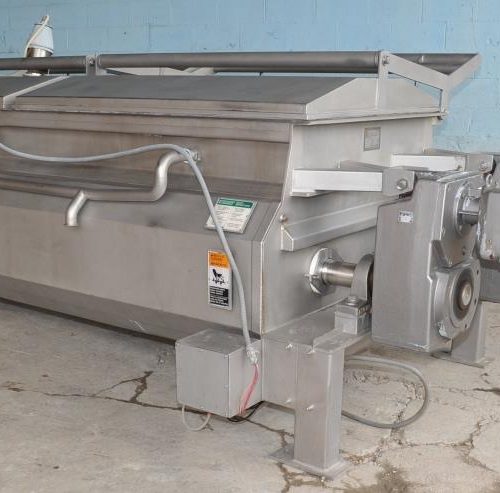

Blentech Model TP28133X 115 Cu Ft Jacketed Dual Shaft Double Ribbon Mixer. 750 Gallon Maximum Working Capacity, 4,400 Pounds Capacity, 133 in L x 44 in W x 35 in D Trough Interior Dimensions. Maximum Jacket Working Pressure 90 PSI at 331 Degrees F, Type 1 Partial Cylinder Type Jacket, Jacket Area 81 Sq Ft, Steam in Jacket For Heating and Glycol For Cooling, Min Design Temp -20 Degrees at 90 PSI, 2 1/2 in W x 1/2 in Thick Ribbons, 4 in Thick Shafts, Interior Scrapers, (6) Interior Spray Balls, 2 1/2 in Diameter Tri Clamp Top End Inlet, (2) 90 Degree 4 in Diameter Tri-Clamp Bottom End Outlets, Exterior Top Mounted Light with Glass, Site Glass, (2) Hinged Covers with (2) Pneumatic Cylinders Each, (2) 5 HP Drives, National Board Number 85. 230/460 V (wired 460V), 3 Ph, 60 Hz.
https://www.youtube.com/watch?v=Tl0p0uw9ii8
