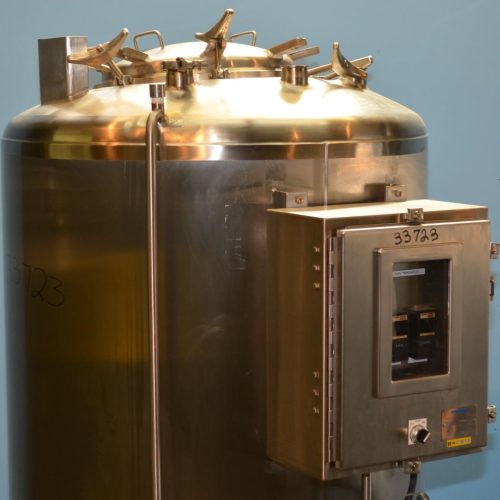

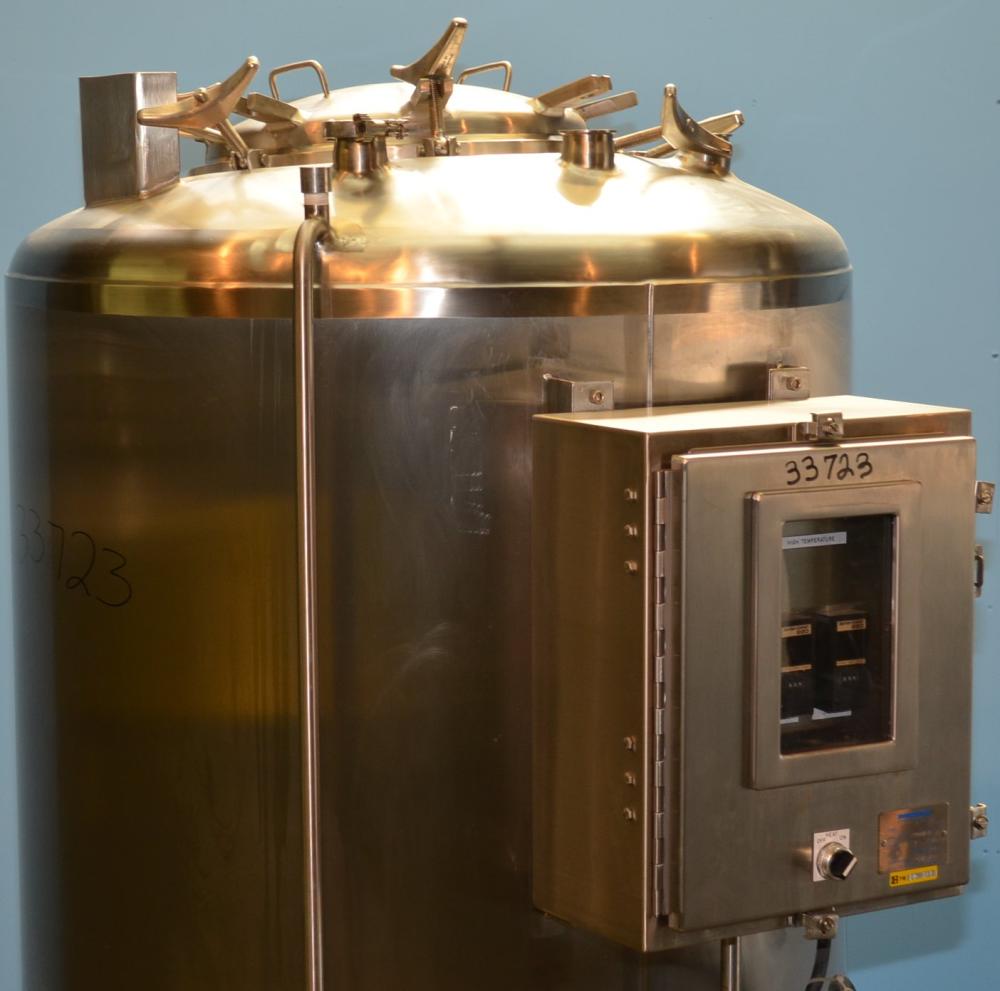

200 Gallon Mueller Model F 50 PSI Jacketed Vertical T316L S/S 320 Grit Pressure Tank
| Loeb # | 33723-001 | Model | F |
|---|---|---|---|
| OEM | Paul Mueller Co | ||
| Year | 1992 | Serial | P386471 |
| Electrical | 3/460/60 | Location | Illinois |
| Condition | As is | Size | 200.00 |
| Lease for only | 246.08 / mo. | Rent for only | N/A |
200 Gallon Mueller Model F 50 PSI Jacketed Vertical Non Agitated T316L S/S 320 Grit Finish Pressure Tank. Approx. Overall Size: 5ft. L X 4ft. W X 8ft. H Jacket Info: 50 PSI at 150 Degrees F Electrically Heated with Water, Design Vacuum: 29.92in HG. National Board #19636, Inside Dims: 34 in Dia X 47.5 in Straight Side. Top Type and Approx Depth: Closed Top w/ 18 in Dia Hinged and Bolted Manway. Top Openings 1-3/4 in, (3) 2 in. Bottom Type: Slope. Outlet Info: 2 1/2 in Tri-Clamp Bottom Side Outlet. No Internal Baffels. Internal Pressure or Vaccum: Full Vacuum. Sidewall only electrically heated water jacket consisting of: (3) Heatron special 2000 watt, 2.5 watt per square inch, 460 volt, heating pad, jacket must be vented, rated 150 degrees F. Includes a control panel with (2) Barber Colman temperature controllers. Internal Misc Information: With Electric Heaters And Control Panel. Inside Is 320 Grit Electric Finish, Outside Is 150 Grit Finish. Provision For Agitator.
