2,000 Gal Cherry Burrell S/S Turbine Agitaded dished top, sloped bottom Jacketed
| Loeb # |
64066 |
Model |
|
| OEM |
Cherry Burrell Corp |
| Year |
|
Serial |
|
| Electrical |
|
Location |
Illinois |
| Condition |
Running |
Size |
2,000.00 |
| Lease for only |
908.37 / mo. |
Rent for only |
N/A |
Have one of these to sell?
ITEM SOLD: Need One Of These?

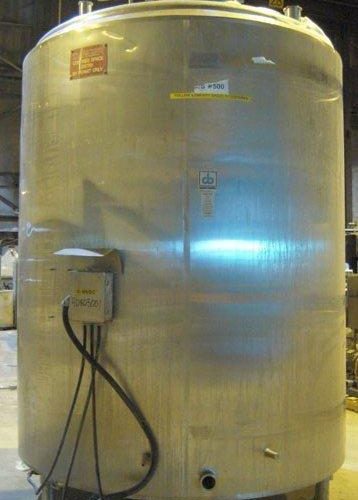

2000 Gal Cherry Burrell S/S Tank, 316 stainless steel, vertical. Approximately 84 in diameter x 96 in straight side, dished top, sloped bottom. Insulated with stainless steel sheathing. Channel jacket, no rating. Fixed stainless steel agitator bridge. Approximate 1 1/2 in diameter bottom supported shaft with a 2 blade bottom sweep blade and a twisted four blade agitator, driven by a 5/2.5 hp, 3/60/575 volt, 1750/850 rpm gearmotor. (1) top mounted adjustable baffle, (2) spray balls. Openings: top (2) 3 in tri-clamp, 4 in tri- clamp, 18 in manway with cover; approximate 3 in tri-clamp side bottom outlet. Mounted on 3 stainless steel legs, approximate 16 in discharge height
