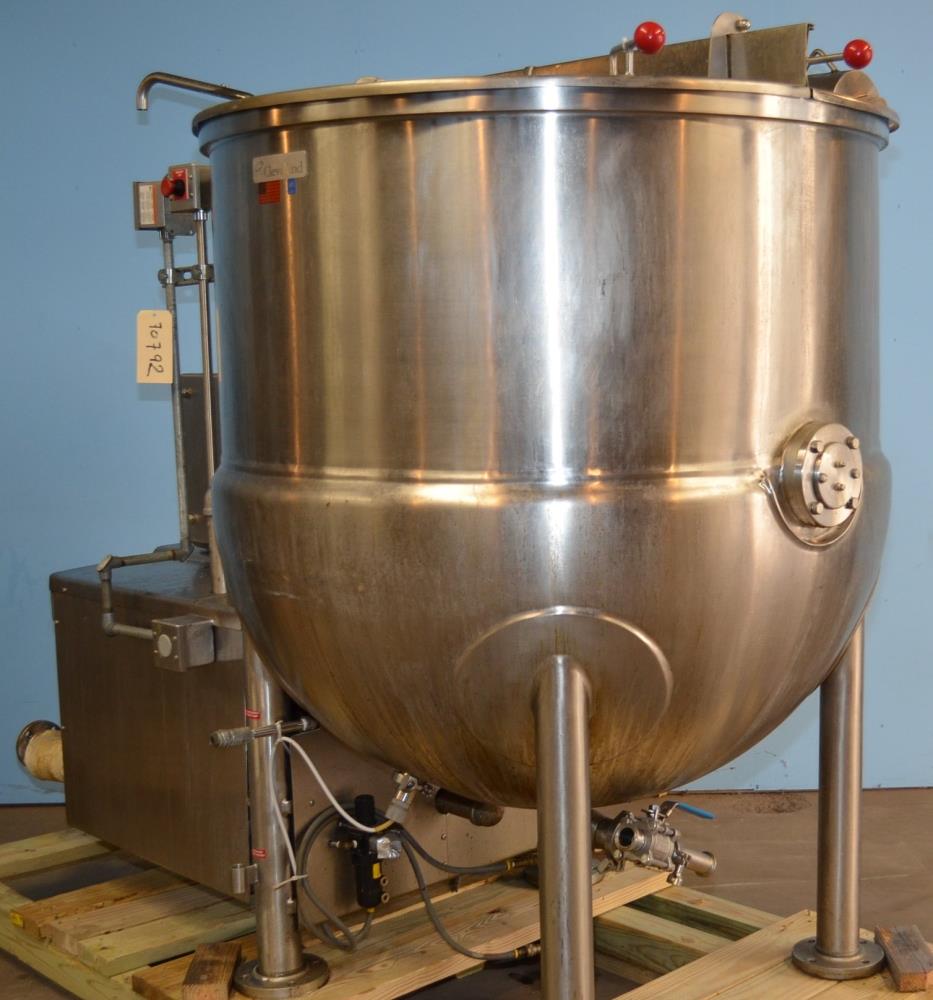

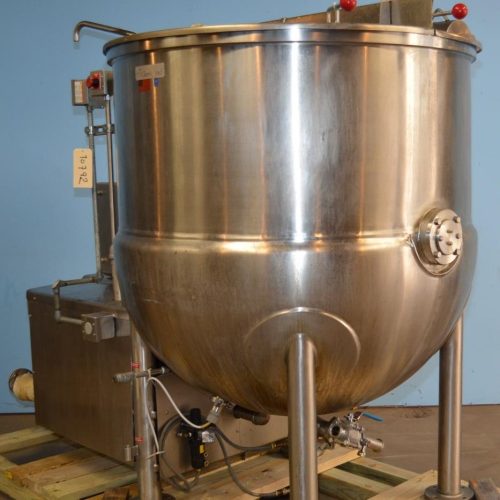

300 Gallon JC Pardo Self Cont Model HAMKDL3 S/S Jacketed Horiz Scrape Agitated Kettle
| Loeb # | 70792 | Model | HAMKDL300CC |
|---|---|---|---|
| OEM | Pardo And Sons | ||
| Year | 2008 | Serial | 88592 |
| Electrical | 3/460/60 | Location | M-01 |
| Condition | As is | Size | 300.00 |
| Lease for only | n/a / mo. | Rent for only | N/A |
300 Gallon JC Pardo Self Contained Model HAMKDL300CC Stainless Steel Steam Jacketed, Horizontal Scrape Agitated Stationary Cook/Chill Kettle. 2/3 Jacketed with Maximum Working Pressure of 100 PSI at 338 Degrees F. Minimum Design Temperature -20 Degrees F at 100 PSI. 316 S/S Contact Surfaces. Electrically Driven Horizontal Scrape Agitator with Variable Speed Control and Spring Loaded Scrapers. Internal Mixing Fins For Uniform Mixing, Heating and Cooling. 50 in Interior Diameter. 53 in Exterior Diameter. 50 in Deep. 68 in Total Height. 3 in Diameter Tri-Clamp CBO With Pneumatic Piston Draw-Off Valve. 12 in Discharge Height. Automatic Water Meter. Water Fill Faucet with Swing Spout. S/S Bifold Cover with Center Hinge and Counter Weight. (4) 28 in H S/S Legs. Approx 5 HP Agitator Drive. 1 1/2 in Diameter 30 GPM Chilled Water Inlet. 1 1/2 in Diameter Chilled Water Return. 3/4 in Diameter 20 GPM Cold Potable Water. 3/4 in Diameter 20 GPM Hot Water. 1 in Diameter Condensate Return. 1 1/2 in Diameter Drain. 1 1/2 in Diameter 1575 LBS/HR Steam Inlet. 1/2 in Diameter 1 CFM Air Inlet. National Board Number 3131. 460 V, 3 Ph, 60 Hz, 22 Amps.
