300 Gallon Viatec Horizontal 316 S/S 55psi Jacketed Scrape Paddle Mixer
| Loeb # | 74528 | Model | |
|---|---|---|---|
| OEM | |||
| Year | 1997 | Serial | 102667 |
| Electrical | 3/230/460/60 | Location | Illinois |
| Condition | Running | Size | 75.00 |
| Lease for only | 911.41 / mo. | Rent for only | N/A |

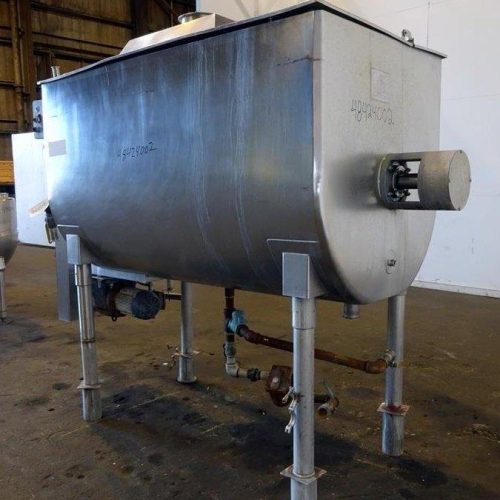

75 Cu Ft Viatec Horizontal Jacketed Paddle Mixer. 75 Cu Ft Total Capacity, 558 Gallon Total Capacity. 316 Stainless Steel. 304 stainless steel dimple jacketed Trough approximate 74 in long x 42 in wide x 44 in deep. Rated 55 PSI at -20 to 300 degrees F. 26.7 Sq Ft jacket area. Top bolt on cover with 8 in, (2) 1-1/2 in, (1) 3/4 in tri-clamp openings, 1/4 hinged. Approximate 3 in Diameter shaft with (6) 1-1/4 in diameter welded posts with 12-1/4 in wide x 4 in tall x 1/4 in thick paddles, plows with bottom scrappers. 3 in Diameter end bottom outlet. Mounted on (4) legs. National Board# 8041. Driven by a 5 HP, 3/60/230/460 volt, 1680 rpm gear motor with 24.52 to 1 ratio.
