4,000 Gallon 316 S/S Vertical Jacketed Double Motion Sweep Scrape Mixing Tank
| Loeb # |
72070 |
Model |
|
| OEM |
|
| Year |
|
Serial |
|
| Electrical |
|
Location |
Illinois |
| Condition |
As is |
Size |
4,000.00 |
| Lease for only |
1,440.03 / mo. |
Rent for only |
N/A |
Have one of these to sell?
ITEM SOLD: Need One Of These?

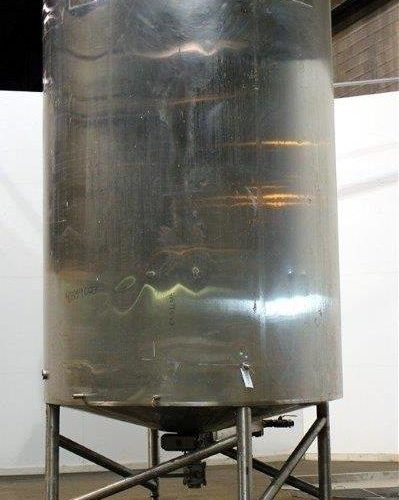

4,000 Gallon 316 Stainless Steel Vertical Jacketed Double Motion Mixing Tank with Stainless Steel Covers. 316 Stainless Steel, Vertical, Jacketed. Approximate 98 in diameter x 134 in straight side. Flat top with 1/3 covers, cone bottom. Channel jacket no ratings. Top stainless steel agitator bridge with dual top entering mixers, approximate 3 in diameter shaft with (4) 4 blade turbines, driven by a (1) 40 HP, 3/60/230/460 volt, 1760 rpm with 13.43:1 gearbox ratio, anchor style agitator with side and bottom scrapers, driven by (1) 40 HP, 3/60/230/460 volt, 1760 rpm motor with 50.19:1 gearbox ratio, bottom supported. Openings top: (2) 2-1/2 in, 1-1/2 in, 3 in center agitator, side: (4) 2 in. Center bottom outlet. Mounted on (4) stainless steel legs. Load Cells.
