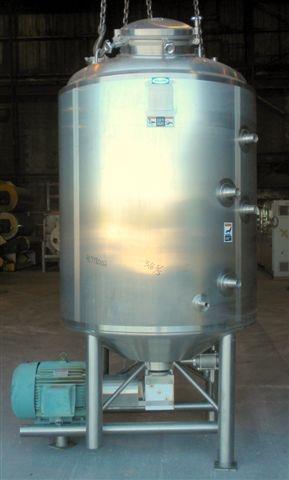

500 Gallon Walker Model PV Round Jacketed Liquifier / Liquiverter
| Loeb # | 64670 | Model | PV |
|---|---|---|---|
| OEM | Walker Engineered Products | ||
| Year | 2003 | Serial | SPG414991 |
| Electrical | Location | Illinois | |
| Condition | Running | Size | 500.00 |
| Lease for only | 1,549.40 / mo. | Rent for only | N/A |
500 Gal Walker Model PVLiquiverter Stainless Steel Jacketed Liquifier, Jacketed tank 52in diameter x 60in straight side, dished top, coned bottom. #4 sanitary internal rated 45/-10 psi at 320 deg.f., and -20 deg.f. at 45 psi. 42in section of side wall channel jacket rated 75 psi at 350 deg.f., and -20 deg.f. at 75 psi National Board # 5166. Insulated with 2in fiberglass, and 304 stainless steel sheathing. Bottom entering 11-1/2in diameter impeller, driven by a 40hp, 3/60/230/460 volt, 1775 rpm motor thru a Heavy Duty Diequa gearbox, #62, 7SP 039 reducer, no ratio. (2) top mounted adjustable, and removable baffles. Openings top (2) 2in tri-clamp, 3in tri-clamp, (2) 6in tri-clamp, 12in flange, 20in manway with cover. 3in tri-clamp tangential bottom outlet, approximately 23in discharge height. (4) 2in threaded jacket inlets. Mounted on 4 stainless steel legs
