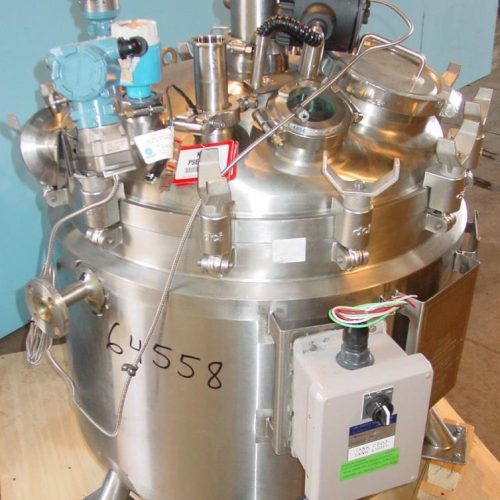

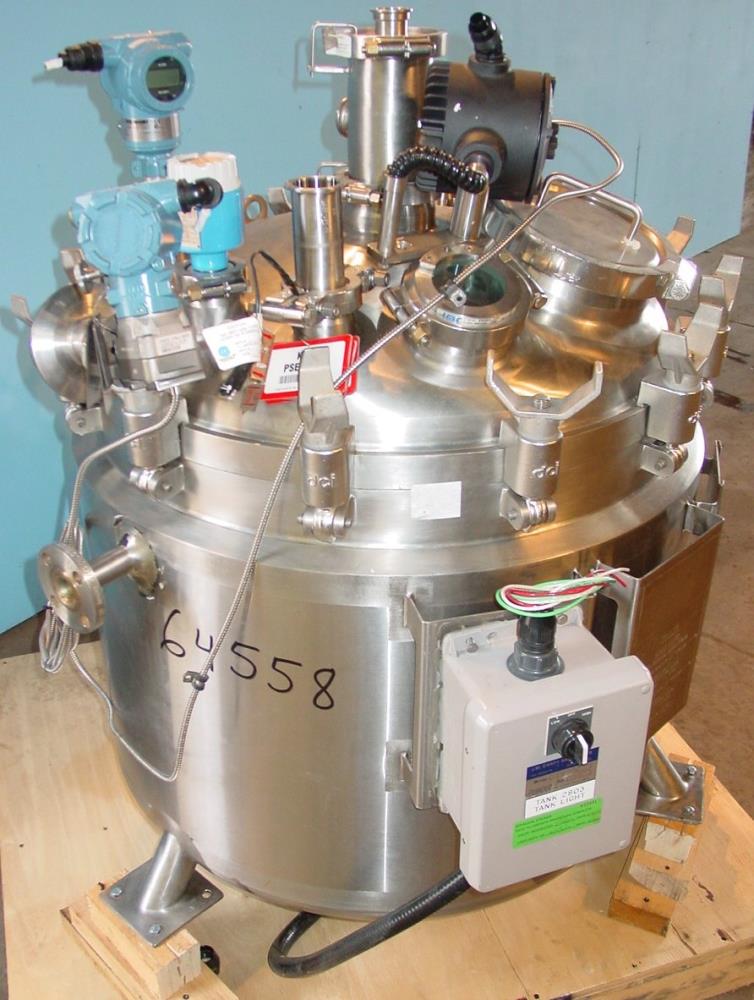

65 Gallon (250 Liter) DCI 316L S/S Jacketed Pressure Vessel
| Loeb # | 64558 | Model | |
|---|---|---|---|
| OEM | D C I Incorporated | ||
| Year | 2001 | Serial | JS1122 |
| Electrical | N/A | Location | M-05 |
| Condition | Running | Size | 65.00 |
| Lease for only | 187.75 / mo. | Rent for only | N/A |
65 Gallon (250 Liter) Jacketed All 316L Stainless Steel Pressure Vessel. 2 1/4in x 2 1/4in pattern dimple jacket and head with shell. 316L S/S Jacket, 28in inside diameter, 32 3/4in outside diameter. Insulation on shell and bottom head is 2in chloride free ceramic fiber, CIP 2 1/2in DCI spray ball with flow rate of 22GPM at 25 PSI, top and bottom head 28in interior diameter, 1/2 in tri-clamp product inlet, 2in tri-clamp lever sensor port, 2in tri-clamp pressure port, (2) 2in tri-clamp spare inlets, 3in tri-clamp level port, 8in tri-clamp hand hole, 4in tri-clamp sight/light assembly, 2in tri-clamp relief vent, 1/2in NPT Therm-Well temperature probe, 1in dia jacket inlet and outlet, 28in dia 12 lug manway/tank access, MAWP 50/-15 @ 350 Degree F, Jacket MAWP 135/-15 PSI @ 358 Degree F with 1 gallon capacity, Minimum Temperature -20 Degree F @ 140 PSI, Natl brd number 4837, Interior polish: 240 Grit, Exterior Polish 180 Grit,, Dome top and bottom, 1 1/2in buttweld outlet w/ pnuematic actuated plug valve,. 22in straight side. J M Canty Model HYL-80-LS-WP direct mount 80 W halogen tank light with control and 3in diameter viewing glass, 315L S/S and Hastelloy C276. Rosemount model 3051 Pressure Measurement Transmitter 316L S/S and Hastelloy C276. Endress Hauser Liquiphant FTL51H liquid level limit switch.
