BERG Model HX2P Chiller Skid w/ Plate Heat Exchangers, Waukesha 30 Pump and Filters
| Loeb # | 64244 | Model | HX2PKG |
|---|---|---|---|
| OEM | Berg Chilling Systems | ||
| Year | Serial | W00489BGB10700 | |
| Electrical | 3/230/460/60 | Location | M-05 |
| Condition | Running | Size | 10.00 |
| Lease for only | 158.59 / mo. | Rent for only | N/A |

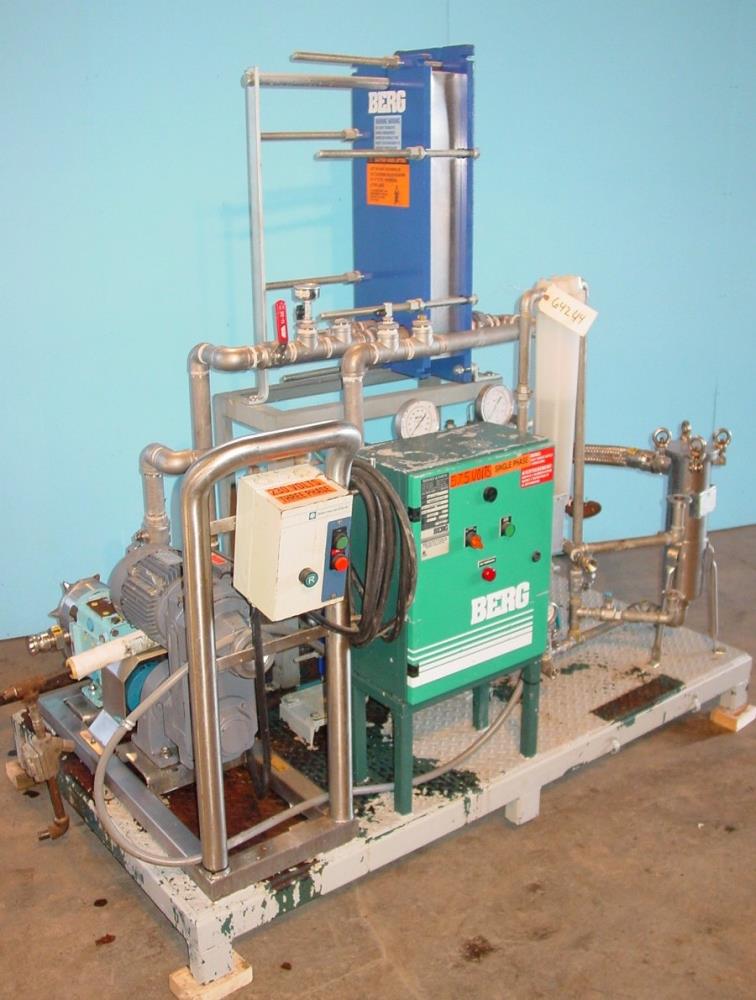

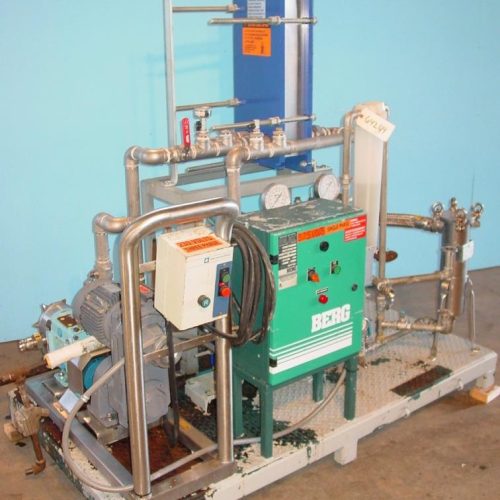

BERG Model HX2P Chiller skid complete with (3) plate heat exchangers, model HX2PKG. Berg/Alpha Laval Heat Exchanger 1- MAWP 150 PSI at 100 degrees F, MDMT -20 degrees at 150 PSI, model M6FG, Area 74.27 Sq Ft, S/N 3011070635, year 2007, A-Dim 122mm W/490.50mm PLTS, Berg/Alfa Laval Heat Exchanger 2- Max Working Pressure 150 PSI at 300 degrees F, minimum design metal temperature 20 degrees F at 150 PSI. Berg/Alpha Laval Heat Exchanger 3- Max Working Pressure 100 PSI at 100 degrees F, minimum design metal temperature 20 degrees F at 100 PSI. Waukesha model 030 positive displacement pump with 1 1/2in inlet and outlet, S/N 248987, 1.5 HP SEW drive. GAF Filter model RBXASLHD, S/N 2185, year 1992, Max pressure 300 PSI at 225 degrees F. All mounted on 72in W x 40in D x 7in H platform including various tubing, vales and pressure guages.
http://www.youtube.com/watch?v=Q31TAoWE4N0
