Centec DeAlcoTec 20 hl/h 100,000 BBL Capacity Per Year Dealcoholization System
| Loeb # | 200327 | Model | |
|---|---|---|---|
| OEM | |||
| Year | Serial | ||
| Electrical | Location | Virginia | |
| Condition | As is | Size | n/a |
| Lease for only | 16,405.42 / mo. | Rent for only | N/A |
Centec DeAlcoTec 20 hl/h 100,000 BBL Capacity Per Year Dealcoholization System. Capacity beer inlet (hl/h) 20. Capacity beer outlet (hl/h) 18.7. Initial Alcohol (vol%) 3.5…5.5. Residual Alcohol (vol%) without optional aroma water dosing a mother beer blending <0.05. Initial CO2 content (max g/l) 5.5. Residual C02 content (g/l) with optional carbonating system 6.00. Outlet alcohol-water 1mixture (l/h) 130. Outlet alcohol concentration (vol%) 75…..85. Sealing Water consumption (l/h) 100. Required steam (barg): 6.00. Steam consumption (kg/h) 360.

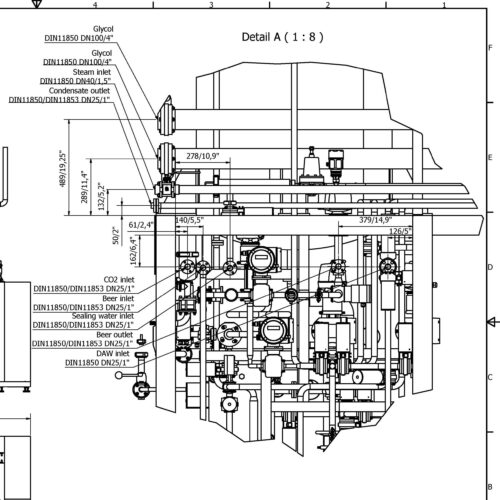

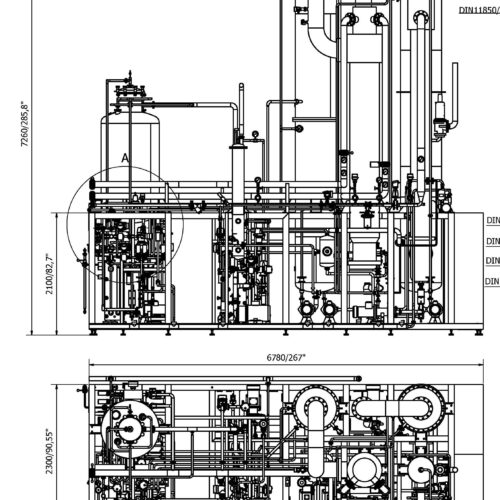

Required glycol temperature (°C) -2….+2. Required glycol pressure (barg) 3.00. Glycol consumption (kW) 265 ….. 280. Glycol consumption (m3/h) 40. Control air pressure (barg) – oil/dust/water free 6.00. Dimensions (L x W x H) 7.5m x 2.5m x 7.5m. Power supply (VAC/ph/Hz) 480/3/60. Electrical power needed (kW) 45
