E Pak Machinery 12 Head Inline S/S Servo Controled Gear Pump Filling System
| Loeb # | 63790 | Model | |
|---|---|---|---|
| OEM | E Pak Machinery | ||
| Year | 2006 | Serial | 090615722208002 |
| Electrical | Location | M-01 | |
| Condition | Running | Size | 12.00 |
| Lease for only | 2,488.16 / mo. | Rent for only | N/A |

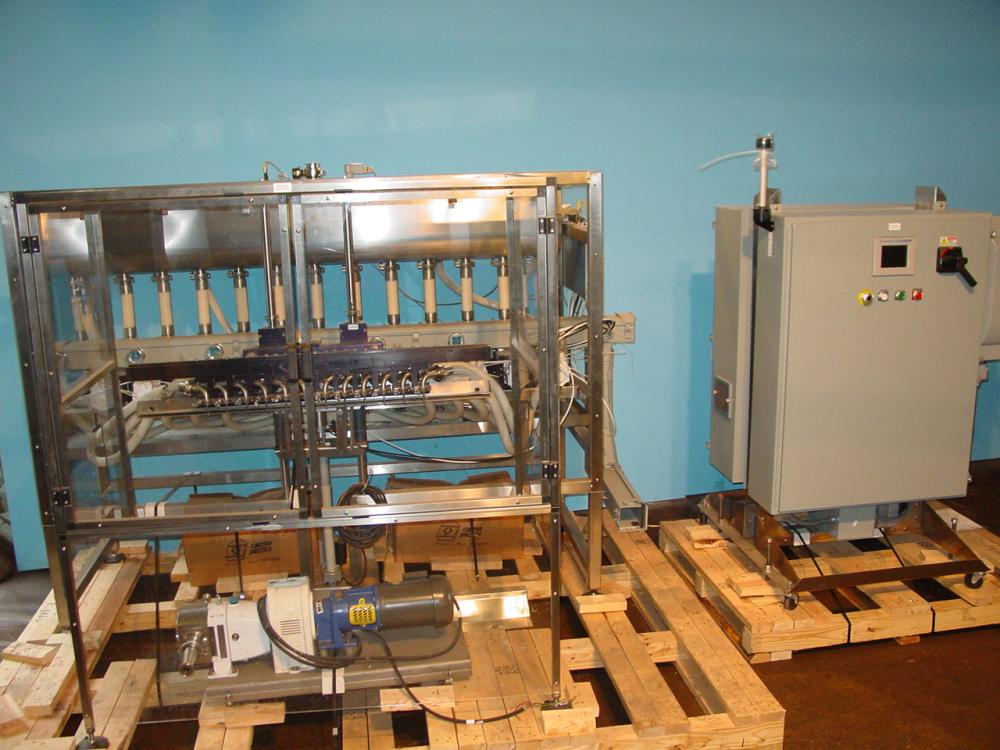

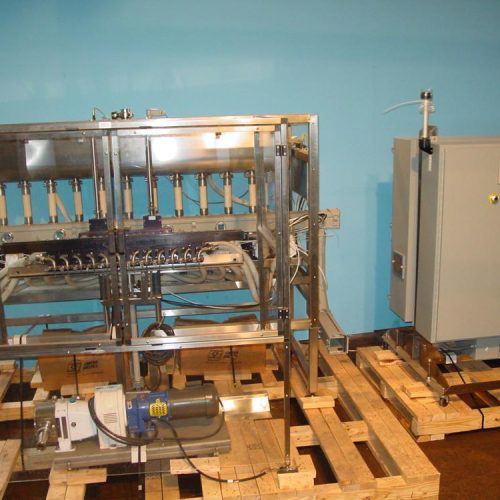

E Pak Machinery 12 Head Inline S/S servo controled Gear Pump filling system with diving nozzles. 86in L x 12in D product tank with sanitary butterfly valves and ultrasonic sensor float with analog output. Sanitary rolled tip fill nozzles 1 1/2in L and approx 1/16in diameter. Indexing starwheel, Includes Jabsco Hy Line model LH540-1890 rotary lobe pump, S/N 35658. Displacement 45.5 litres (12.02 US Gal)/100 revs, max flow rate 455 lpm (120.2 US gal), max pressure 8 bar (116psi), max speed 100 rpm, 1 inch inlet and outlet, 1 HP motor, 1730 RPM, 208/230/460V, 3PH, 60Hz. Control panel with Allen and Bradley Panel View Plus 600 controls, Allen and Bradley Model Kinet 6000 Servo, Allen and Bradley Logix 5561 PLC, Allen and Bradley Power Flex 40 Frequency Drive. 480V, 70A, 3 Phase
