Ing A Rossi ULTER Triple three Effect Continuous Fractional 20,300 kg/ hour Evap
| Loeb # | 63658 | Model | ULTer600 |
|---|---|---|---|
| OEM | Ing A Rossi Group | ||
| Year | Serial | ||
| Electrical | Location | Illinois | |
| Condition | As is | Size | 0.00 |
| Lease for only | 5,450.24 / mo. | Rent for only | N/A |

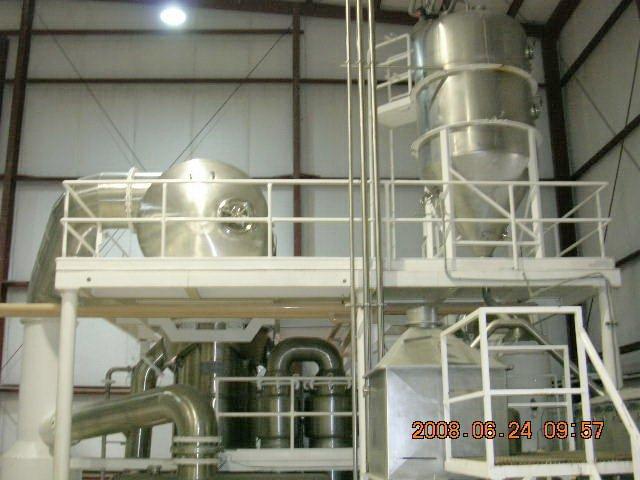

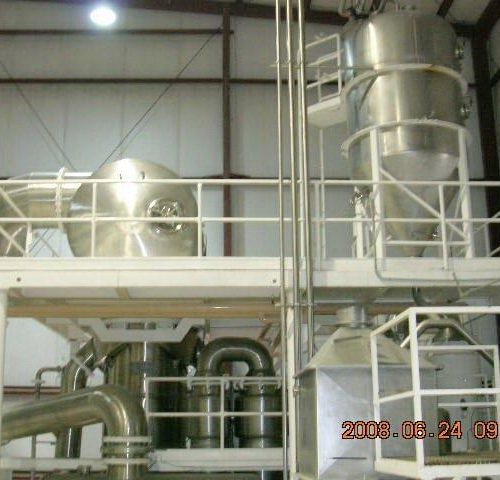

Ing. A. Rossi Triple Effect Continuous Fractional Evaporator, Model ULTER. Approximately 2,500 to 3,000 sqft area. Forced Circulation, Rising Film, Rated 20,300 kg/ hour capacity. Install power- 376.5HP, steam consumption-7,200Kg/H, water recirculation at 30C -500M3/H, water consumption -35M3/H. Designed for Apple Juice Concentrate. No Essence Recovery, Unit Consists of: (1) Concentrator, 72 in diameter x 84 in straight side with (2) piece steam humidifiers, (1) 26 in diameter x 114 in long, (1) 20 in diameter x 15 ft long with a steam humidifier. (1) FBM product circulation pump, model TR31VS, serial# 1231. 12 in inlet, 8 ft outlet, 18in impeller, driven by a 50hp, 575 volt motor. (1) 1st stage finisher, 60 in diameter x 32 in straight side x 32 in coned bottom, (1) 2nd stage finisher 48 in diameter x 24 in straight side x 32 in coned bottom with horizontal condensate collection tank, 40 in diameter x 105 in long, vacuometers, and (2) FBM product circulation pumps, (1) Type UH40957B170KW24, 12 in inlet, 9 in outlet, 20 in impeller, driven by a 50 ho 575 volt motor, serial# 871563, (1) FBM product circulation pump, model TR30, serial# 1247. 12 in inlet, 8 ft outlet, 18 in impeller, driven by a 50hp, 575 volt motor, (1) Travini primary condensate extraction pump, model BTT501/3KC/RA, serial# CA1383, driven by a 10hp, 575 volt motor, includes a separator tank. (1) Preconcentrator, 24 in diameter x approximately 15 ft long with 1-1/4 in diameter tube section approximately 90 in long. (1) Vertical condenser, approximately 18 in long with a 316 stainless water extraction Goulds pump, model 3196, type XLT-X, size 8x10.15, rated 275 psi at 100 deg.f., driven by a 60hp 575 volt motor, serial# 238C823, and a top horizontal tank. (2) Sihi vacuum pumps, model L53/2C/GH, serial#s 67219, 67220, no motors.
