Luwa 1.4 Sq Ft Model NL08250014 Skid Mounted t316 s/s Wiped Film Evaporator
| Loeb # | 66101 | Model | NL08250014 |
|---|---|---|---|
| OEM | L C I Corp | ||
| Year | Serial | L407 | |
| Electrical | 3/60/230/460 | Location | Illinois |
| Condition | As is | Size | 1.40 |
| Lease for only | 729.13 / mo. | Rent for only | N/A |

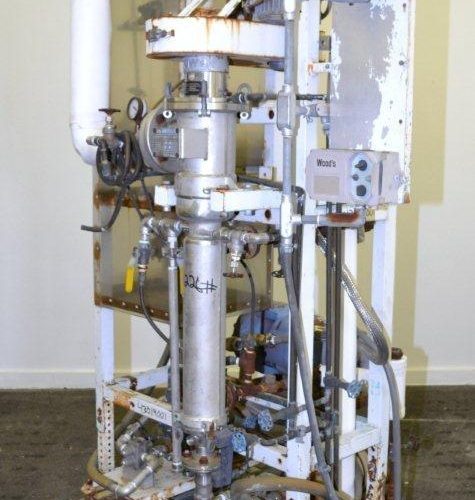

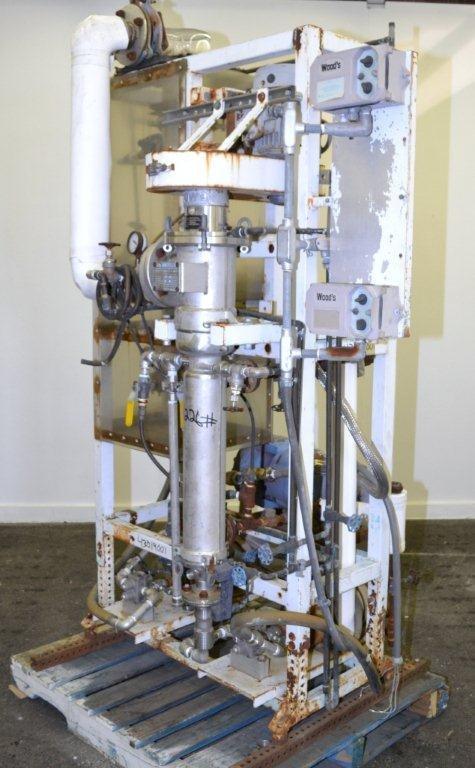

Luwa Thin Film Evaporator, Model NL-082/500/14, 316 Stainless Steel. Approximately 1.4 square feet surface area, 3 in Diameter x 21 in long jacketed thermal section. Internal rated -1 bar (-14.50 psi) at 197 degrees C (387 F.), stainless steel jacket rated 14 bar (203 psi) at 197 degrees C. (387 f.). Conical bottom with outlet, 3 in top vapor outlet. Driven by a 1-1/2hp, 3/60/230/460 volt, 1735 rpm XP motor. Includes (2) Pulsafeeder 2hp pumps, model G6-ACT-KTY-A, (1) Nash 1.5hp vacuum pump, model MD-572, and a Q.V.F. glass condenser. Mounted on a carbon steel frame.
