New York Blower 15 HP Plug Fan
| Loeb # | 65113 | Model | |
|---|---|---|---|
| OEM | New York Blower Co | ||
| Year | Serial | ||
| Electrical | 3/208/230/460/60 | Location | Illinois |
| Condition | Running | Size | 15.00 |
| Lease for only | 164.97 / mo. | Rent for only | N/A |

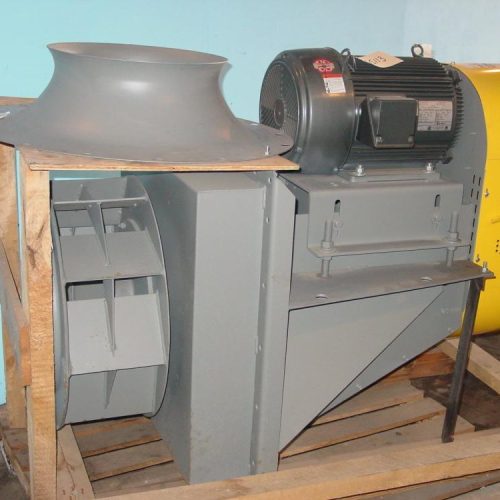

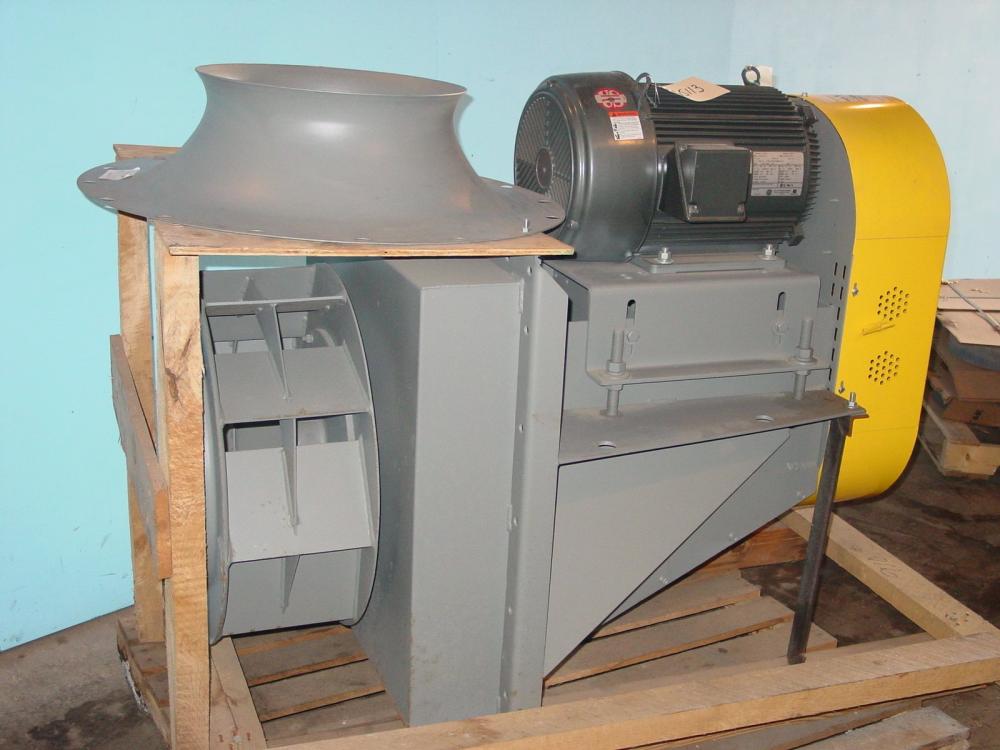

Unused - New York Blower 15 HP Plug Fan, Size: 24 PLR, PLR Wheel: Design: flat, backwardly inclined blade is best-suited for the efficient movement of moist or mildly contaminated airstreams. 33 in x 33 in flanged mount, flanged outlet ring 32 in di flange mount with 17 in dia opeing, The PLR wheels single-thickness blades handle airstreams not suited to hollow airfoil shapes. Efficiency: area of peak mechanical efficiency is on the steeply rising portion of the static pressure curve, the best selection range. Sound: sound levels are lowest with the most efficient fan selections., 15 HP 3 /208-230/460/60 1775 rpm, C/S Frame, Plug Fans are an integral part of the ovens and dryers in which they are applied. Fan performance is based on actual cubic feet per minute at the fan inlet at standard density and static pressure at the fan outlet. Static pressure capabilities are shown in inches water gauge. Air density corrections are necessary for proper selection when air density varies from the standard .075 lbs./cu ft. at 70 deg F. at sea level. Pressure and BHP will be reduced at conditions by the inverse of these factors. Multiply one factor by the other if temperature and altitude are nonstandard. the correction factor is 1.66 . Plug Fans, used in applications where the system plenum acts as the fan housing, combine versatility with compact design to reduce overall system costs. This is achieved while maintaining operating efficiencies nearly equal to conventional housed fan equipment. The Plug Fan eliminates the need for connecting ductwork; its mounting panel permits assembled-unit installation to any well-supported plenum wall. These fans, which are literally plugged into a system, are a natural for supply, exhaust, or recirculating-air applications
