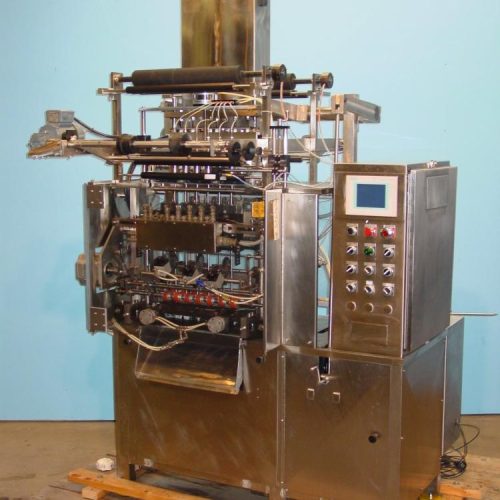

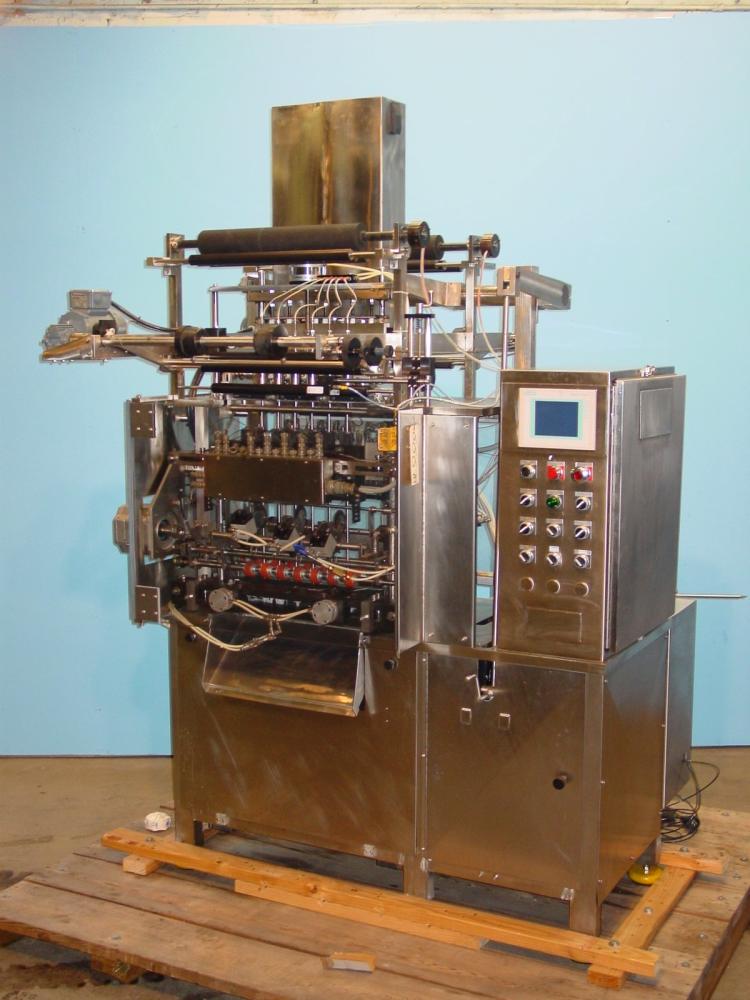

Ropak Model 18V (6) Piston four sided liquid vffs S/S Pouch Filler
| Loeb # | 66678 | Model | 18V |
|---|---|---|---|
| OEM | Ropak Manufacturing Co | ||
| Year | 1991 | Serial | 127 |
| Electrical | 3/230/60 | Location | M-01 |
| Condition | Running | Size | 4.65 |
| Lease for only | 2,734.24 / mo. | Rent for only | N/A |
Ropak Model Liquid 18-V (6) Head VFFS Pouch Filler with regististration, for single or dual packs, for 1/4oz to 1oz pouches of gels, conditioners, shampoo, ointments and creams, unit set for 3-up perforated dual pack in a 4 sided seal dual pouch 118mm W x 130mm L. (6) 14/ in OD S/S nozzles, (3) vertical Cutting Wheels, 18 in W horizonatal seal bar with knife, 20 in w S/S discharge chute, (7) set of film pull down wheels, 21 in w bulk film rollers, 15 in x 6 in 30 in deep S/S divided feed hopper, Cam controlled pump assembly, servo controled web advance with photo-electric controlled front web registration, pneumatically controlled seal assemblies, 6 production lanes, pneumatically operated cut off and rotary valve, one rotary perforation blade assembly to perforate between the dual pouches, one corner spout with side seal nick for easy opening, one set of plunger style fill tubes with air blow off. Heavy duty stainless steel and bar stock frame, stainless steel wash down electrical enclosures, all product contact surfaces are stainless steel or food grade plastics. Programmable controller with push button touch pad, air requirement: 100 PSI at 15 SCFM. Maximum film roll diameter of 20 in with 3 in core ID, heat sealable film: Composite-foil, PET/LDPE-white/A1/EAA/LLDPE-F. Production rate speed of 40-50 cycles per minute, yielding 120-150 dual pouches or 240-300 single pouches per minute. 230V, 3 Phase, 60 Hz. (rebuilt by Ropak in 2001, never installed).
http://www.youtube.com/watch?v=_CwXJhyljvE
