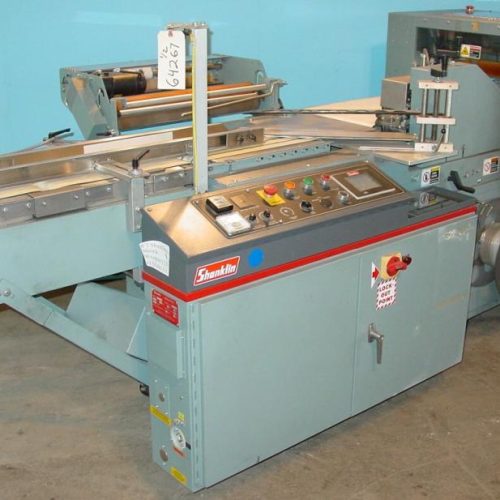

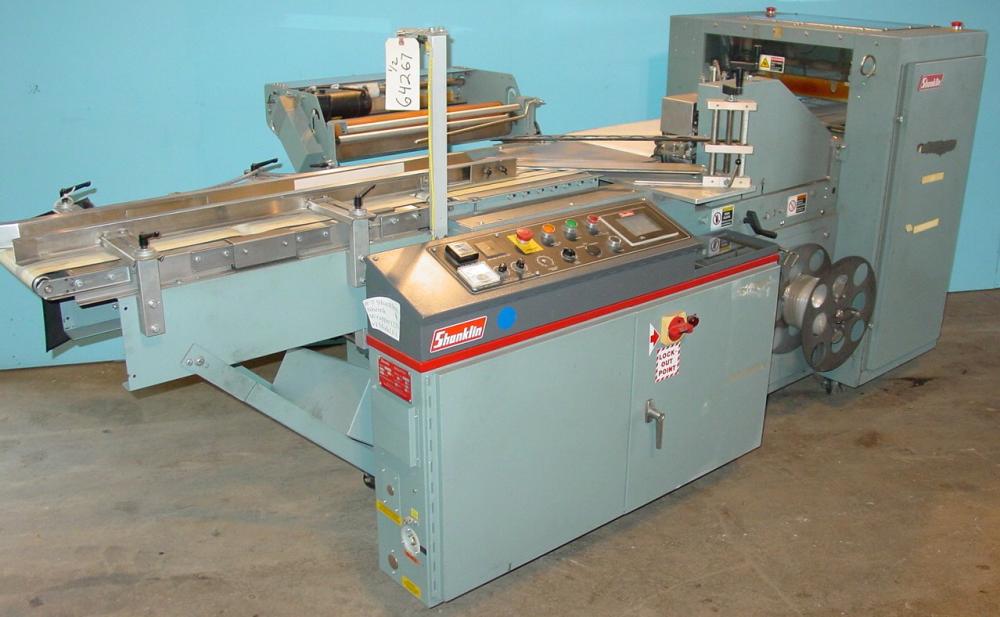

Shanklin Model F1 shrink wrapper w/ T7F heat tunnel
| Loeb # | 64267 | Model | F1 |
|---|---|---|---|
| OEM | Shanklin Corp | ||
| Year | 2000 | Serial | F0084 |
| Electrical | 3/230/60 | Location | N-01 |
| Condition | Running | Size | 50.00 |
| Lease for only | 1,455.45 / mo. | Rent for only | N/A |
Shanklin Model F1 hortizontal flow through shrink wrapper complete with Shanlin T7F s/n T00209 shrink tunnel. 18 in w horizontal cutting bar, 12 in side seal w/ powered scrap take up wheel, Package size: Minimum 1/2in W x 1/8in H x 4in L. Maximum 16in W x 6in H, Maximum film width 22in folded or 44in flat. 50 PPM maximum. 60 linear feet per minute max film speed. 13 in rubberized belt indeed w/ pnuematic product stops, 25 in W film rollers, (2) 5 1/2 in W x 20 in L rubberized outfeed belt, Longitudinal Seal: weld bead at side of package. Transverse Seal: Standard hot knife jaws. 1/230/60, 20 Amps, T7F Shanklin Tunnel: S/N T00209, 21 in W x 9 in H tunnel opening, 3/230/60, 7.8 amp, 6 ft L x 15 in W mesh belt, 3/4 HP top mounted blower, Fully automatic Shanklin FloWrap machines are continuous motion horizontal Form Fill Sealers designed to wrap packages effortlessly and efficiently. Built for peak performance, durability, and versatility, programmable controller with user friendly touch screen control panel for ease of set up, operation and maintenance; includes help diagnostics tool that automatically displays machine faults and corrective actions at the push of a button, Adjustable product spacing and end seal placement accommodate product length and spacing changes for fast and simple product size changeover, Electrical controls are UL listed for meeting the highest safety standards. efficient side sealing wrappers shrinkwrap product with neat trim seals on three sides of the package, handling even irregular shapes with ease. The inverting heads do not require a precise matching of film width, thus allowing you to run many sizes of packages with only a moderate selection of film widths. F1 Features a belt infeed that accepts intermittently delivered and randomly spaced product, setting the correct spacing by controlling the infeed belt speeds. Can also handle random product length for uninterrupted operation. The SHANKLIN Shrink Tunnel tailors the velocity and temperature of the air to favor the wrapping film. Large quantities of heated turbulent air are cascaded into direct contact with the package at velocities as high as 3,000 feet per minute. The air is hot enough to effect excellent uniform shrink, but is not so hot as to melt the wrapping film. This air circulates over 50 times per minute past a temperature controller sensing element that maintains uniform temperature throughout the tunnel, eliminating hot spots.
http://www.youtube.com/watch?v=Ld2X16rRwlc
