Toyo Jidoki Model TT9CW 90 PPM Rotary Preformed 30 – 80 PPM Pouch Filler/Sealer

Loeb # 75019 Model TT9CW
OEM Toyo Jidoki Co
Year 2012 Serial

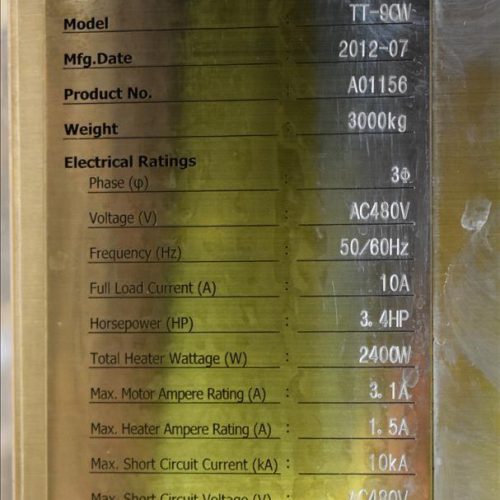

Electrical 3/480/60 Location Illinois
Condition As is Size 18.00
Lease for only 9,095.89 / mo. Rent for only N/A
Have one of these to sell? ITEM SOLD: Need One Of These?

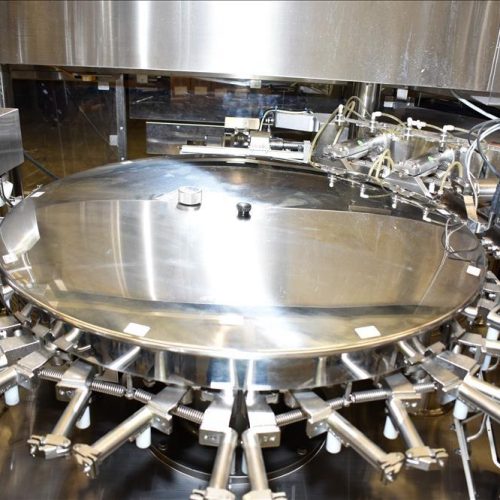

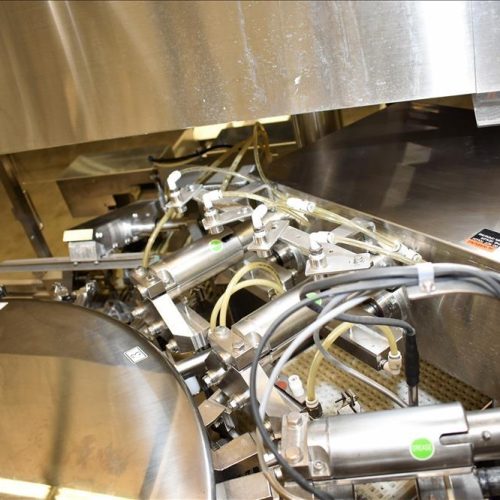

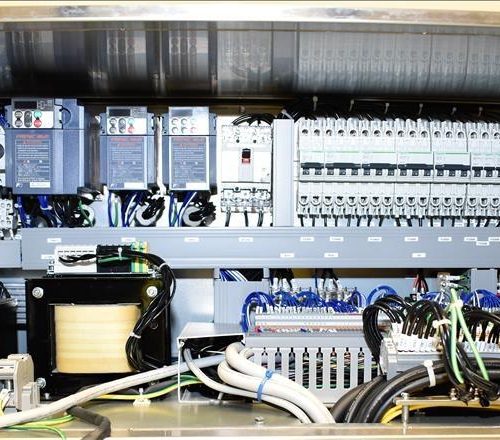

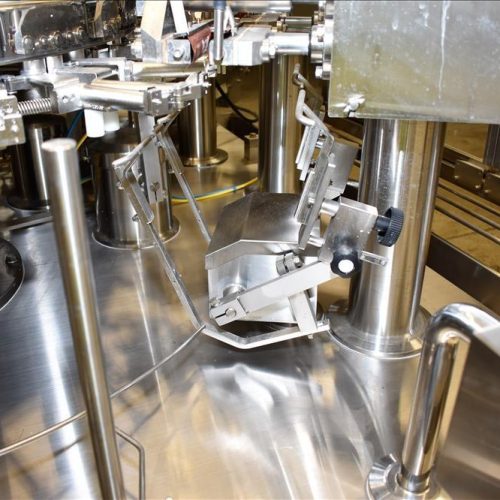

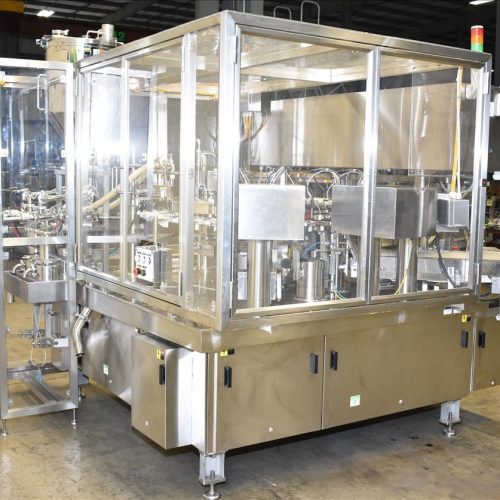

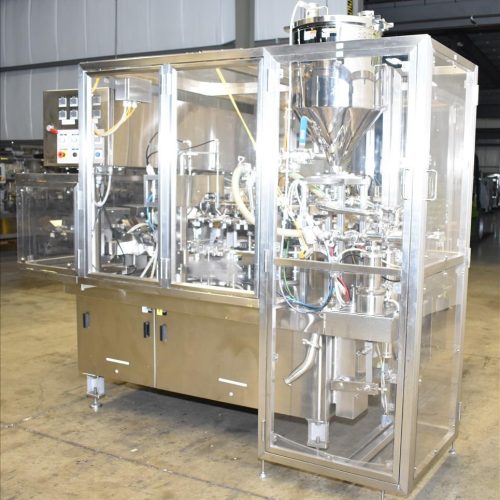

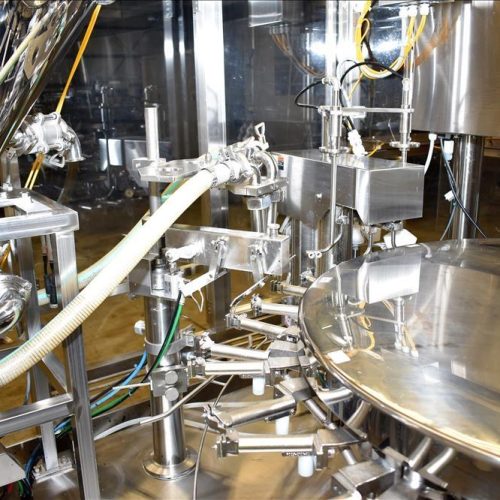

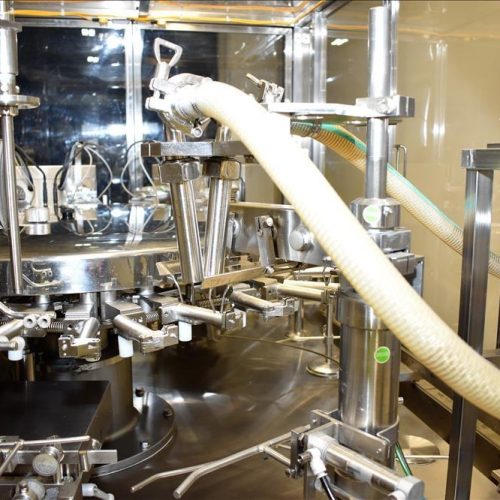

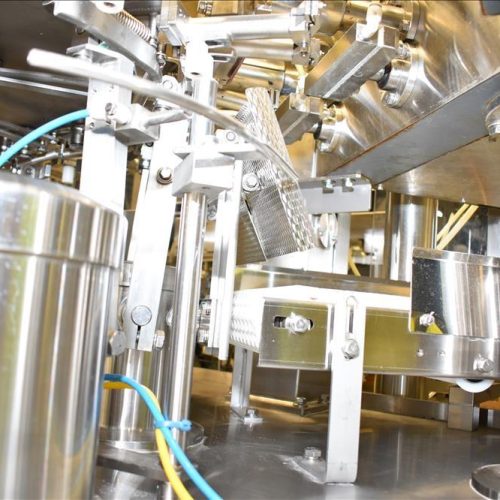

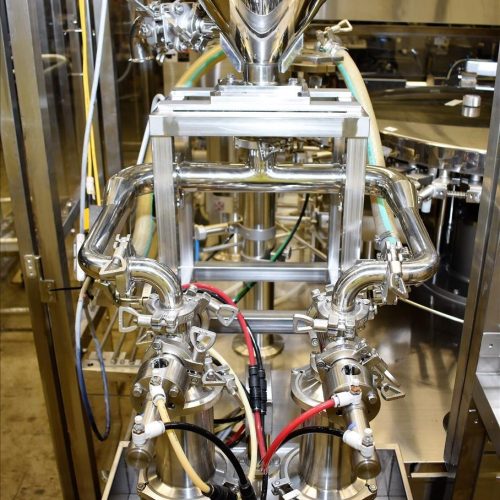

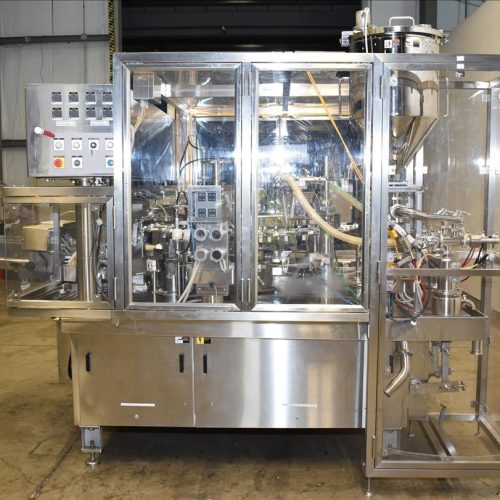

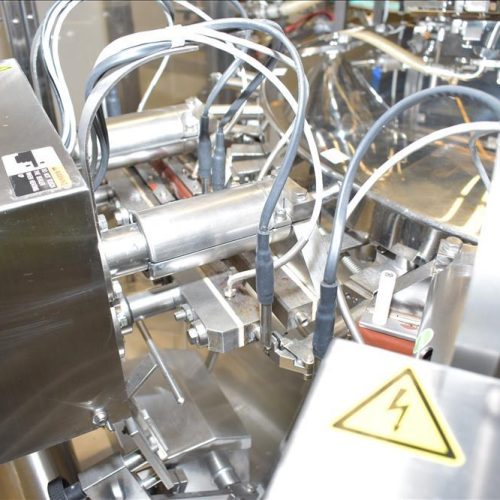

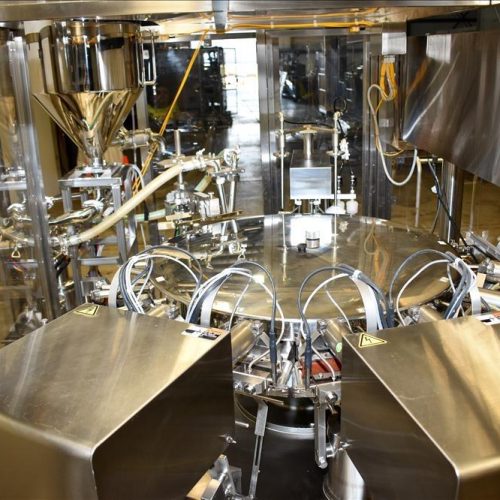

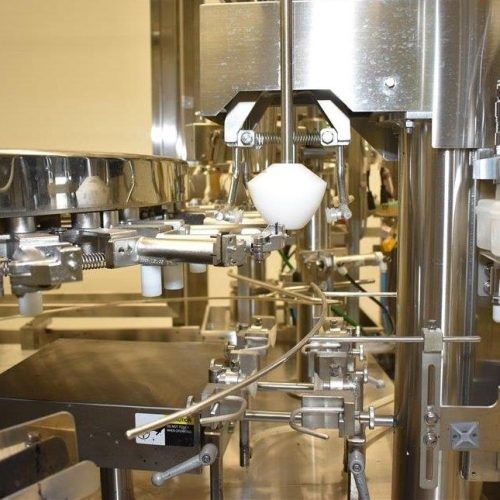

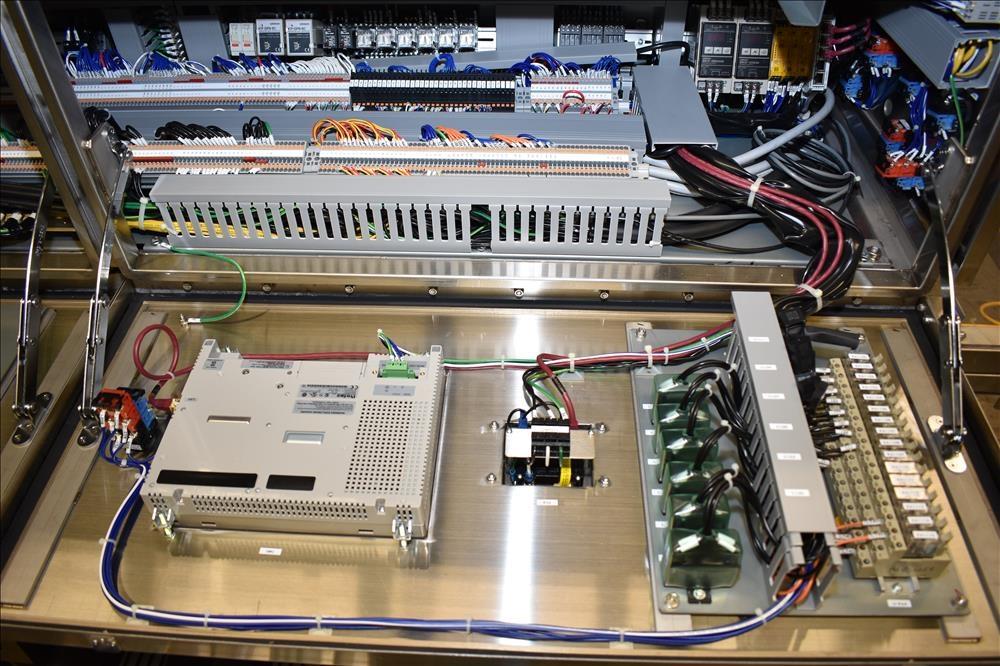

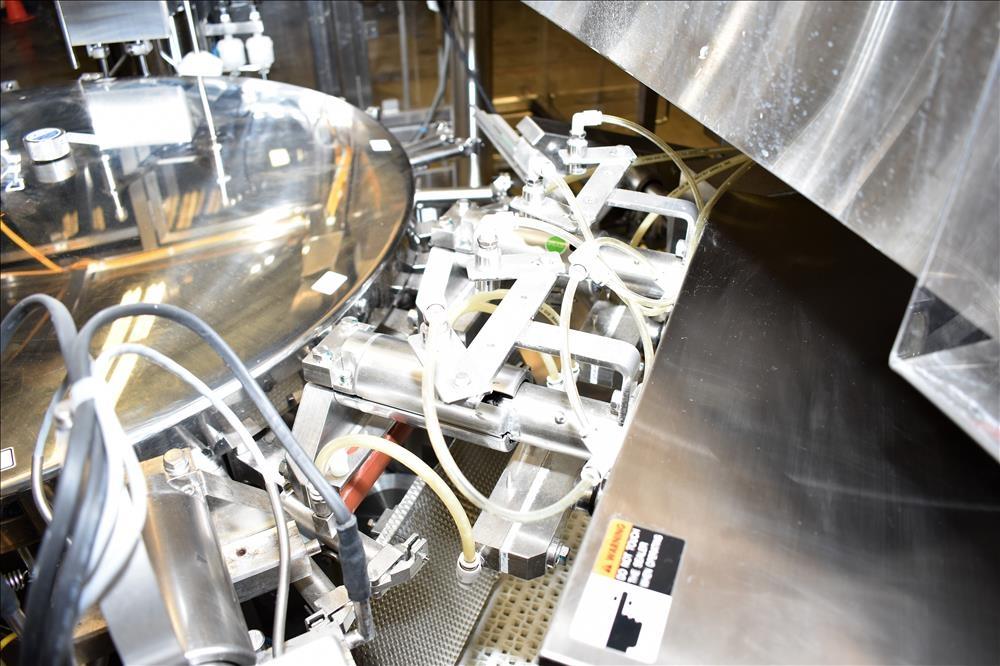

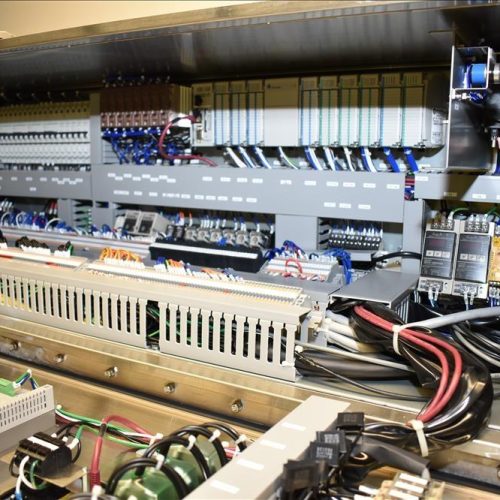

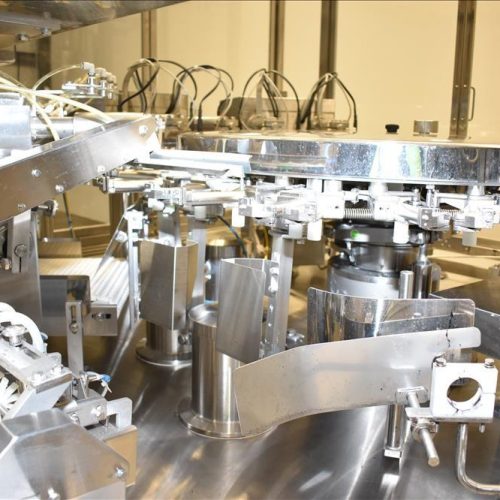

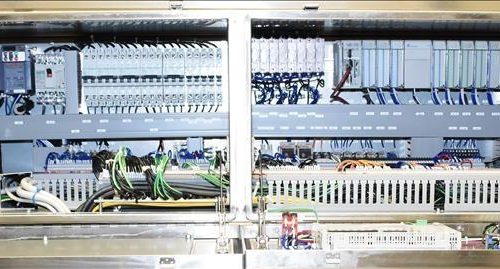

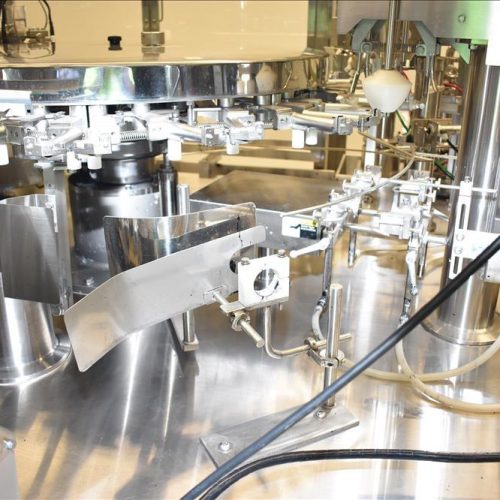

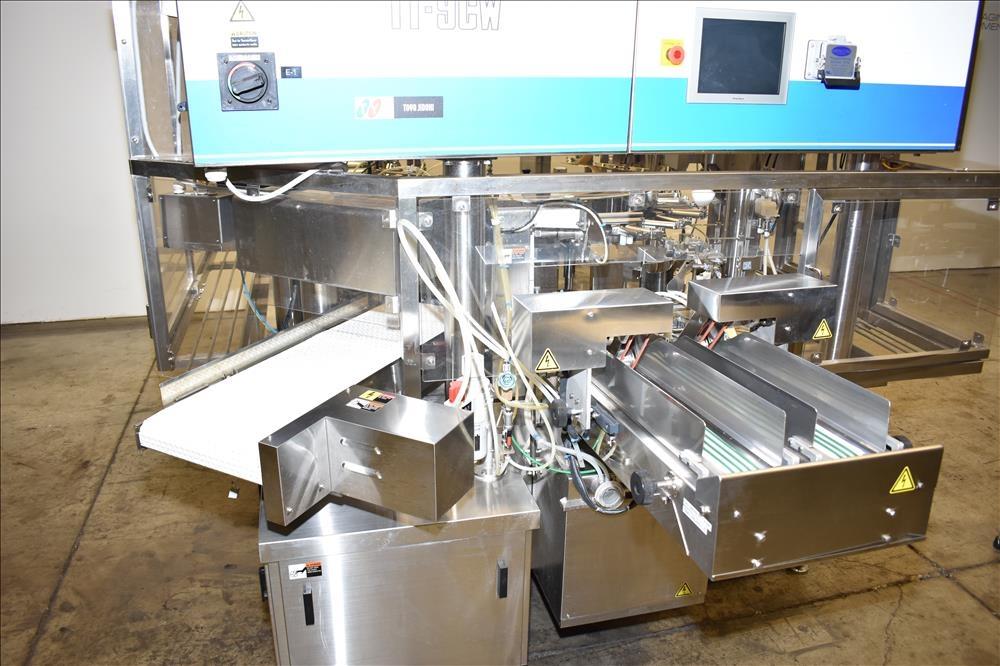

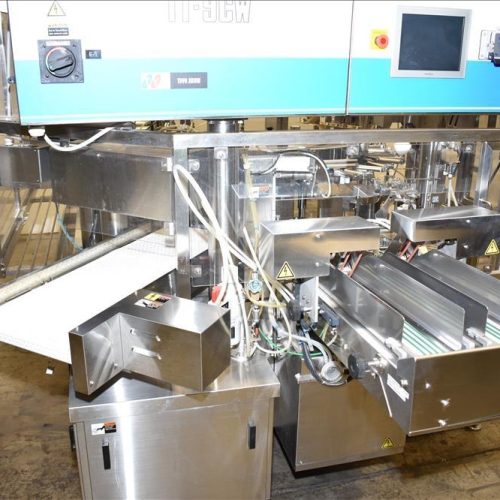

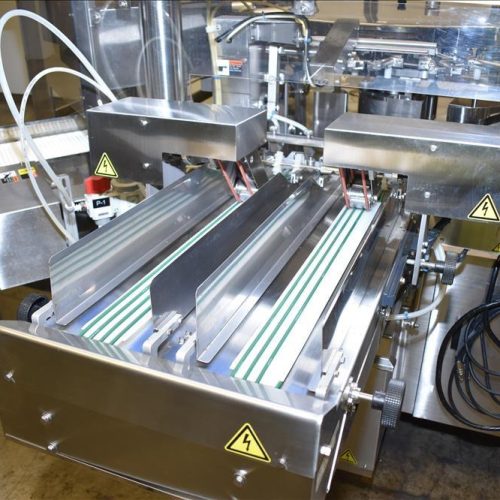

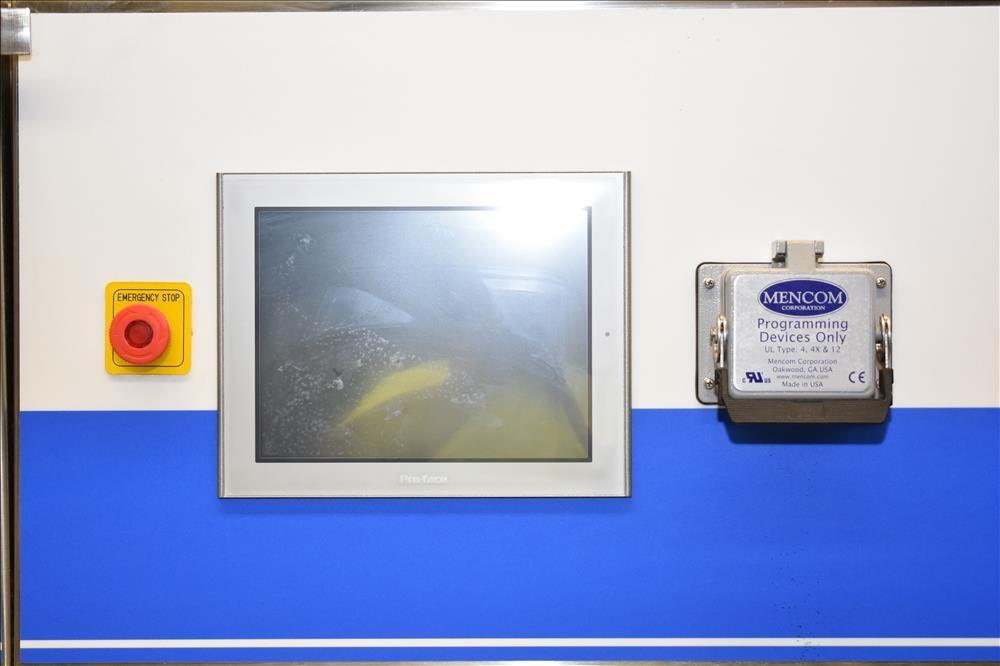

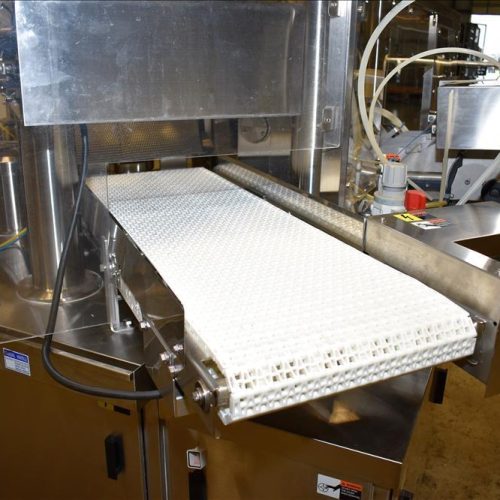

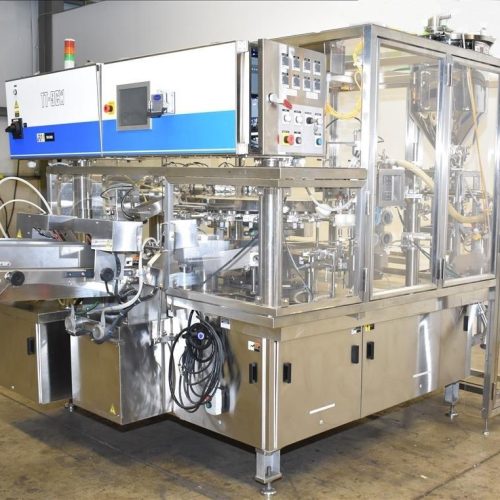

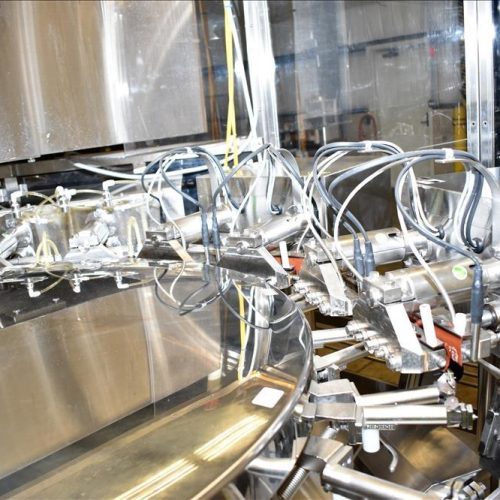

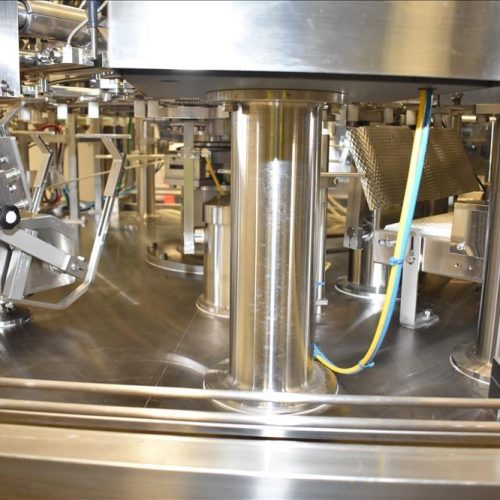

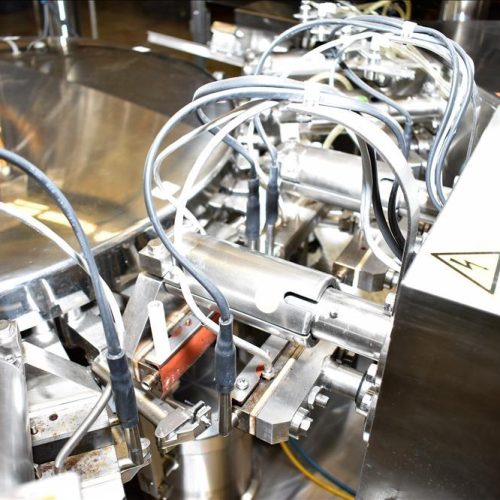

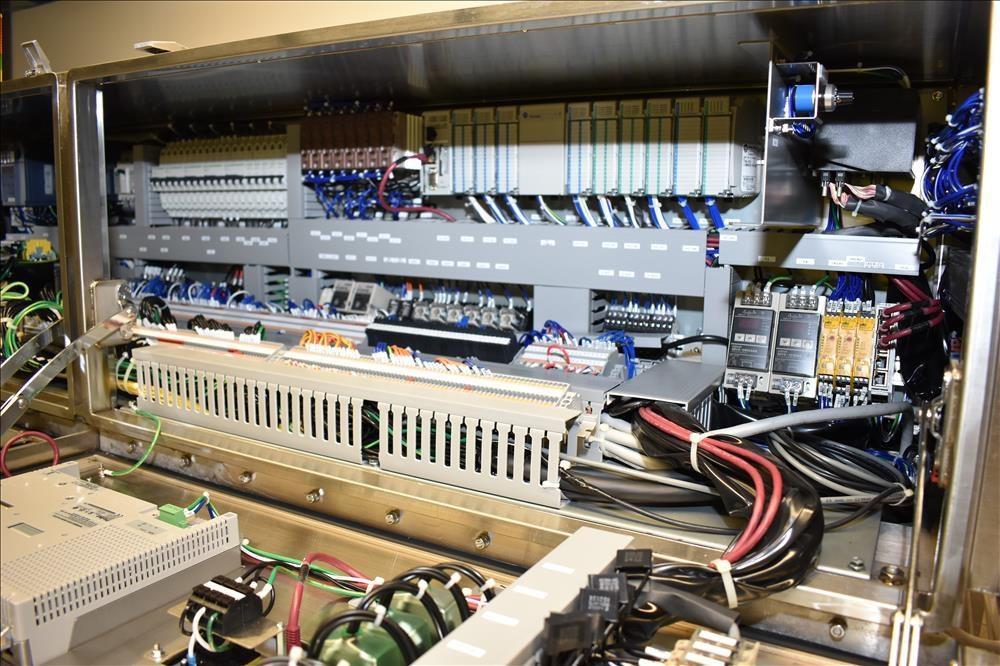

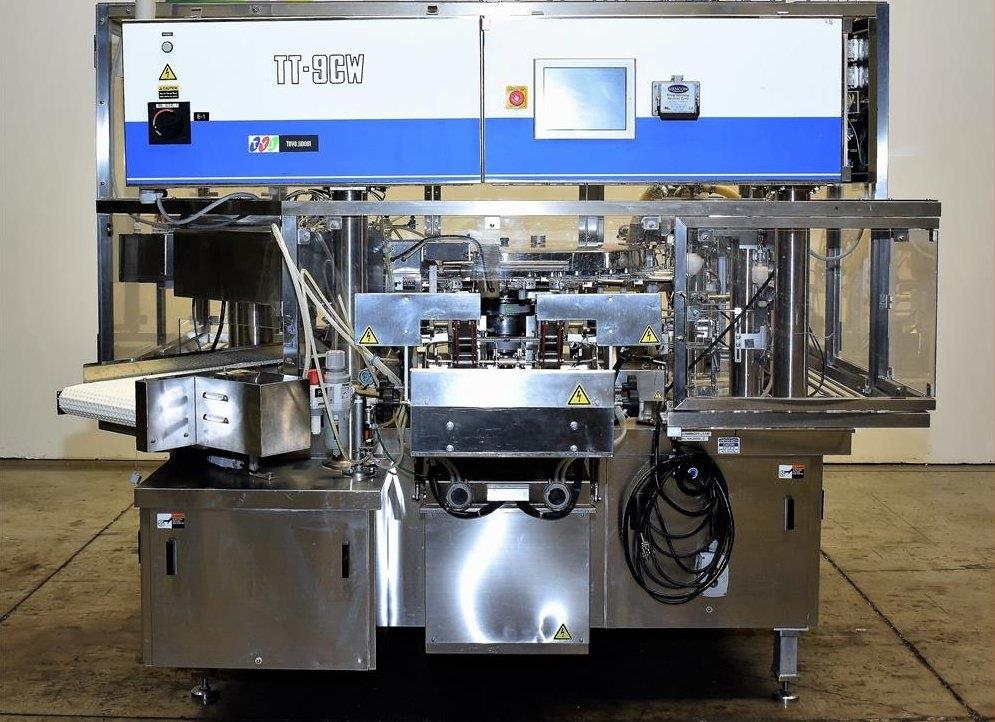

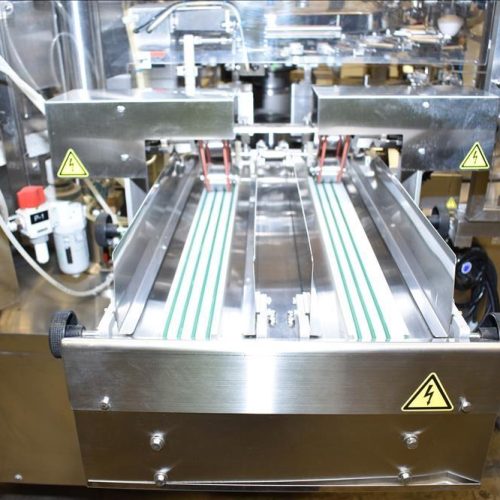

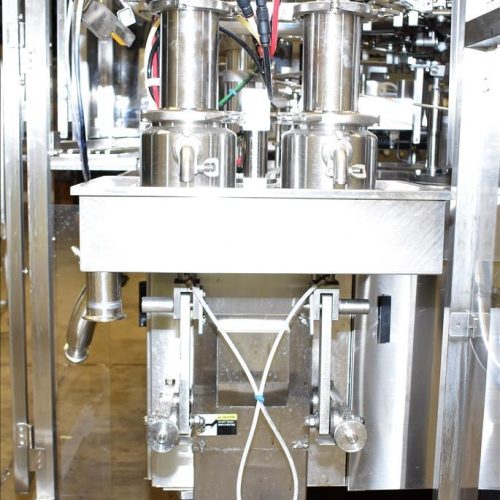

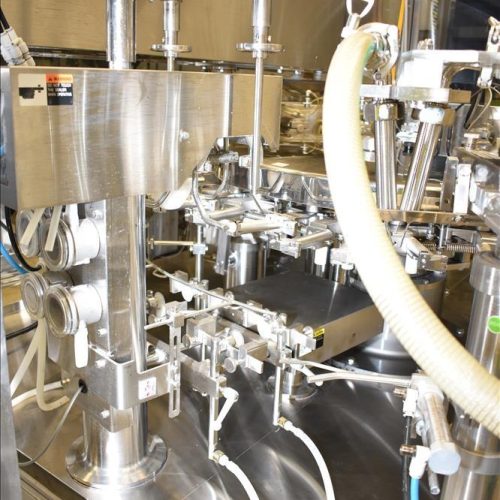

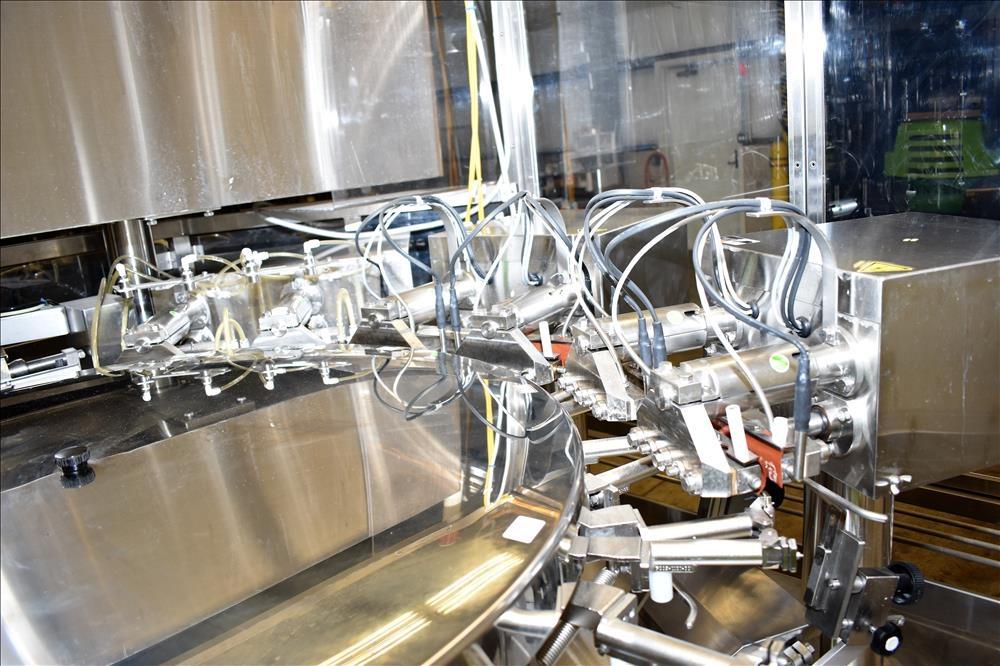

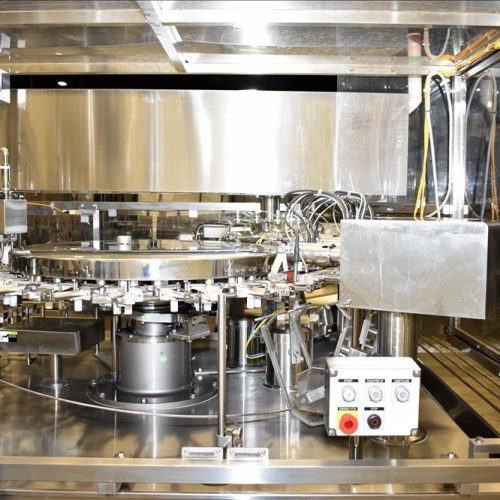

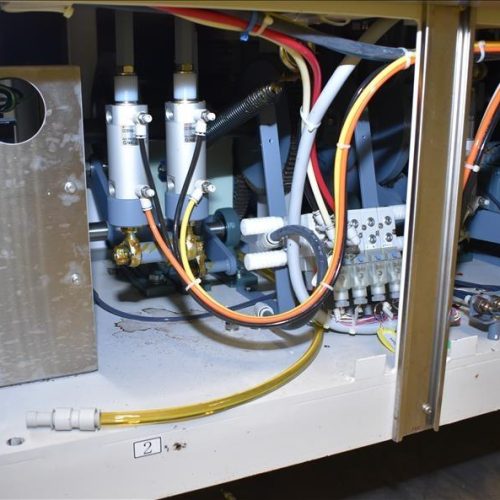

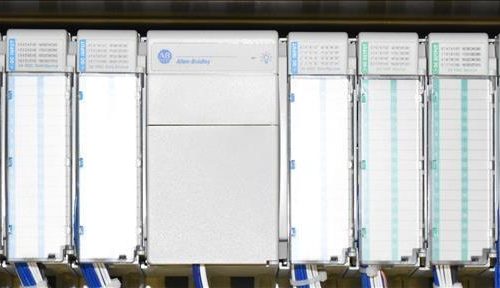

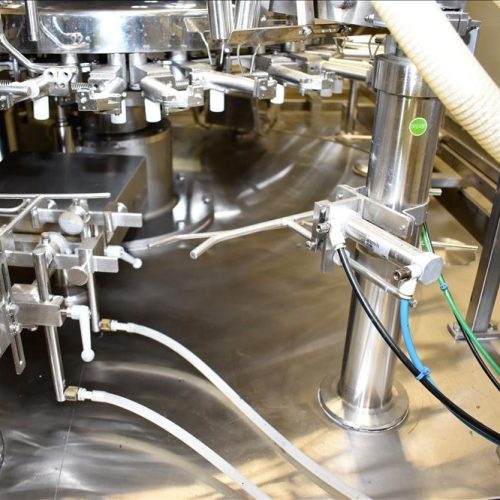

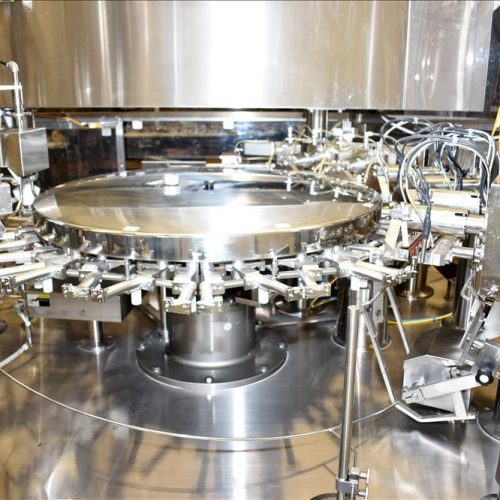

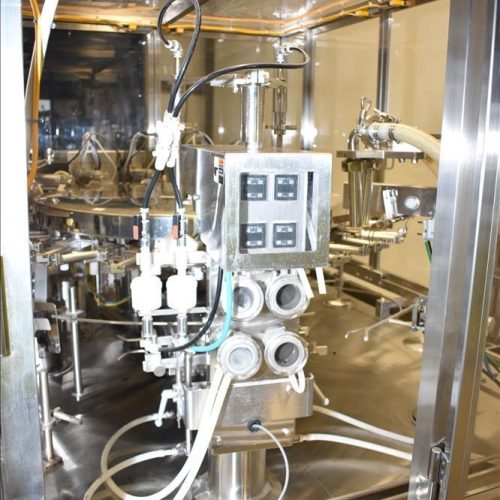

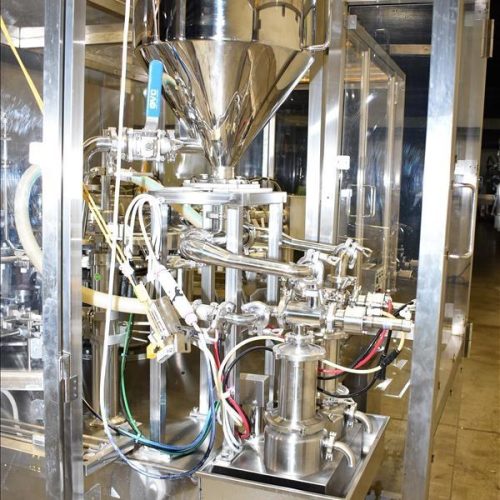

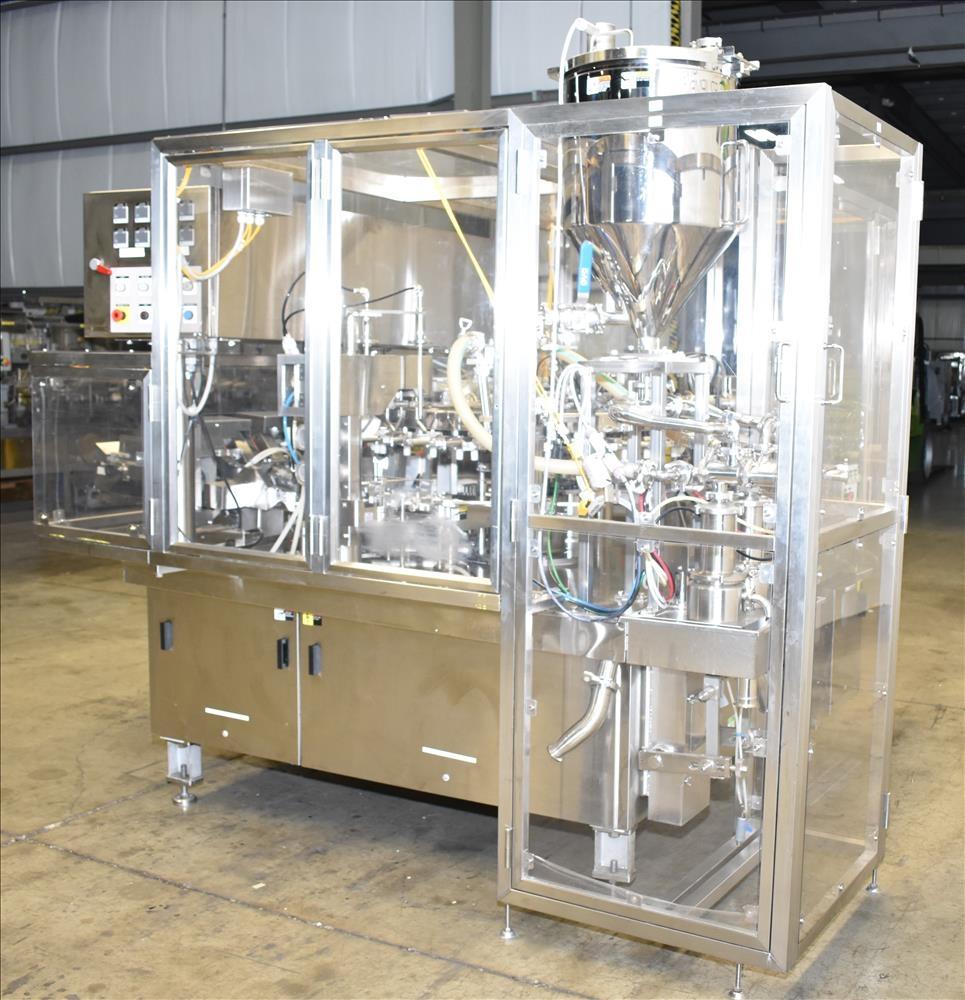

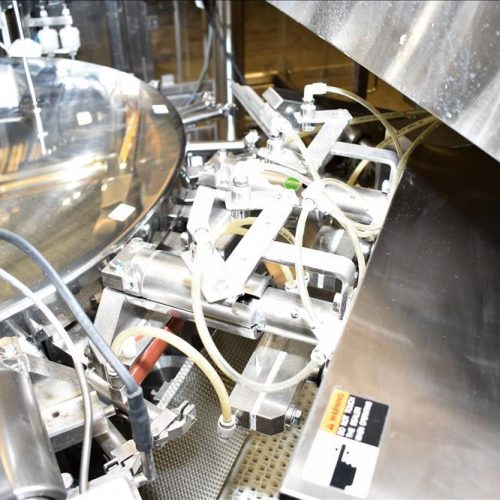

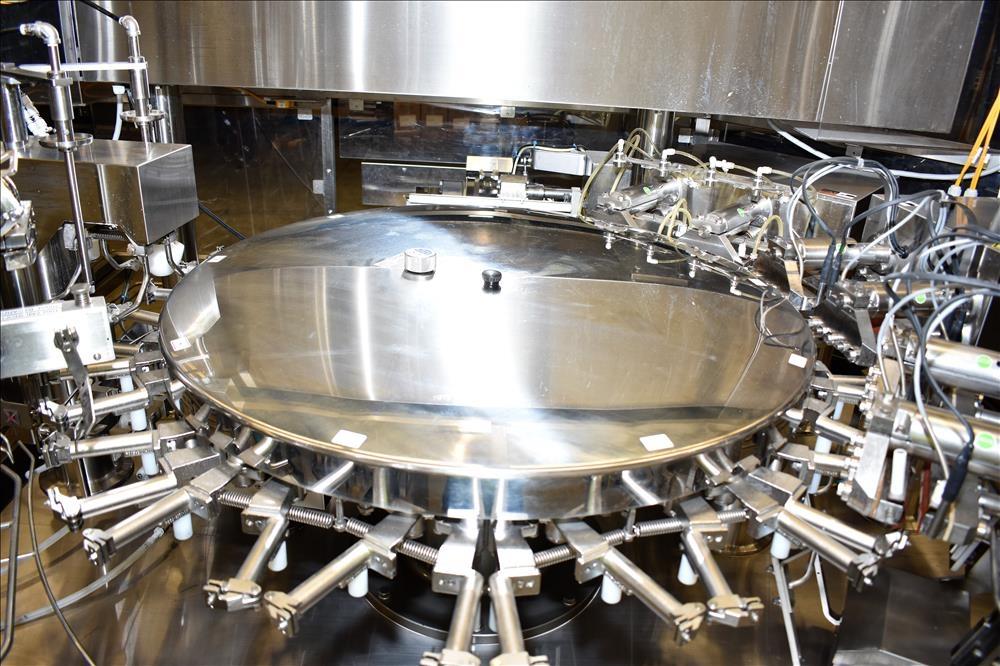

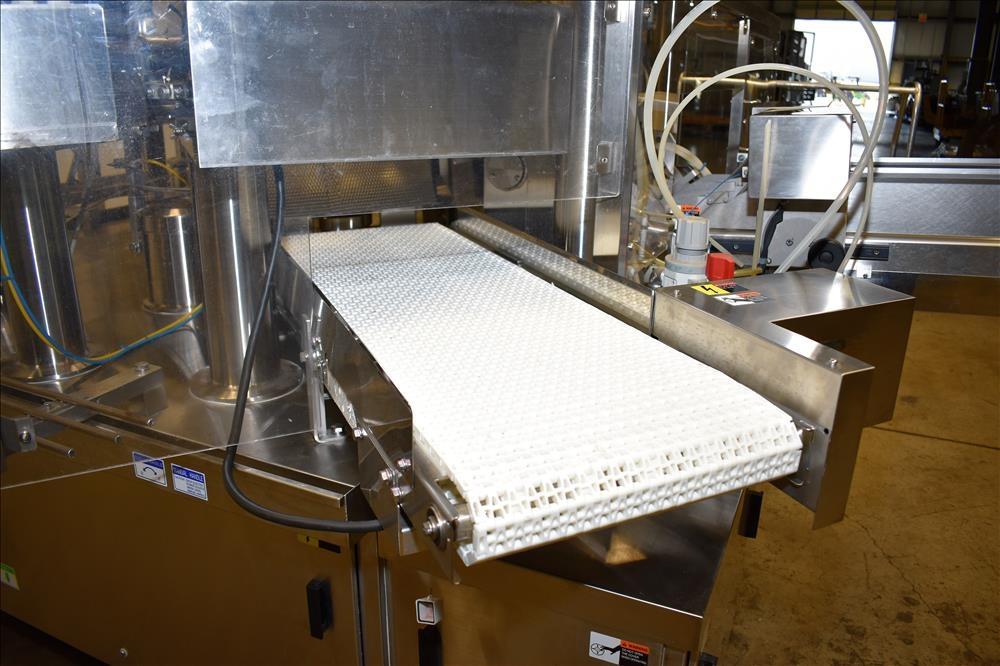

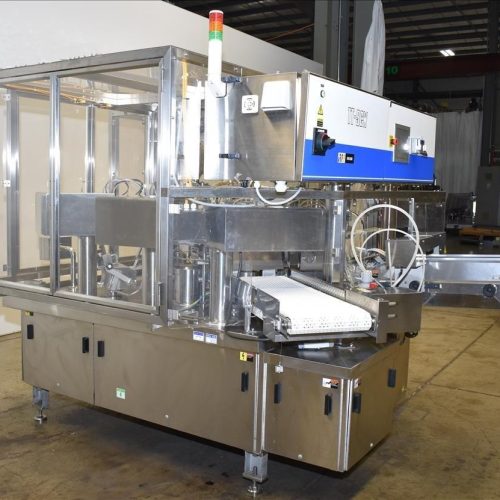

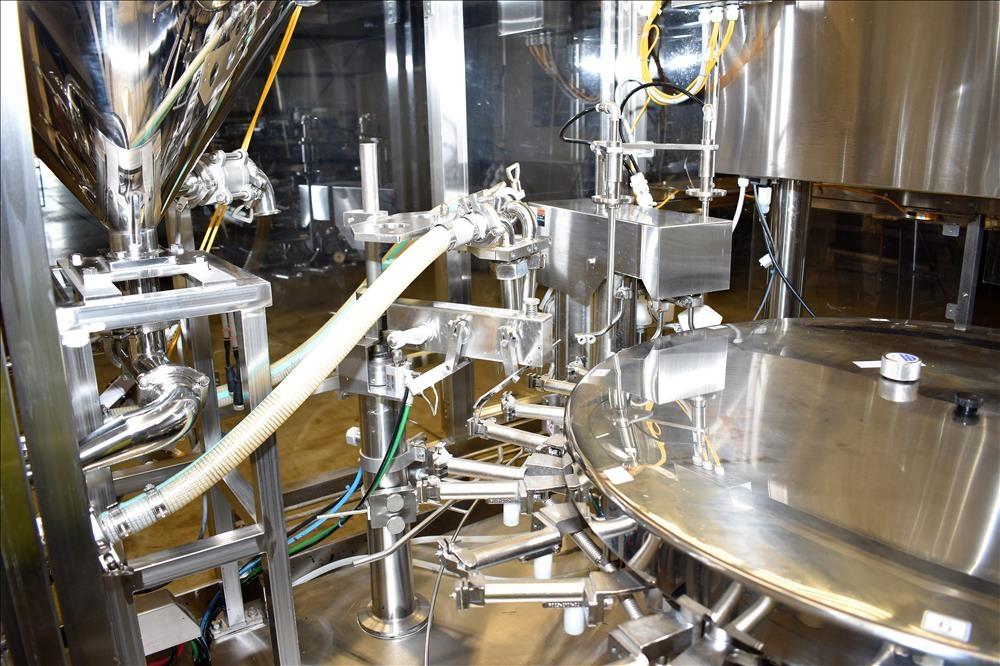

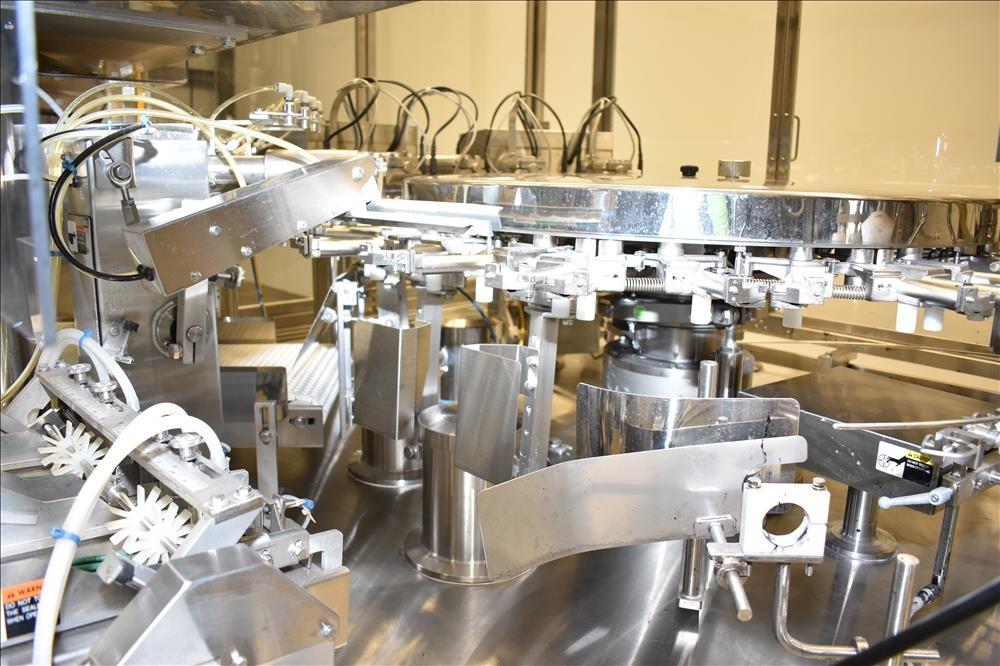

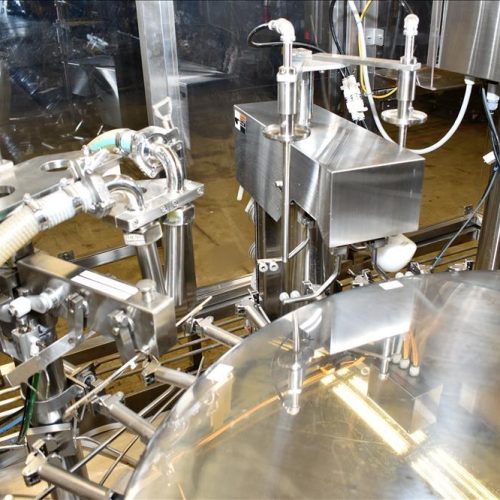

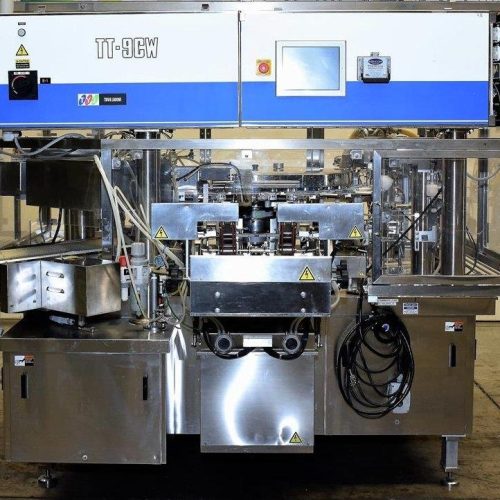

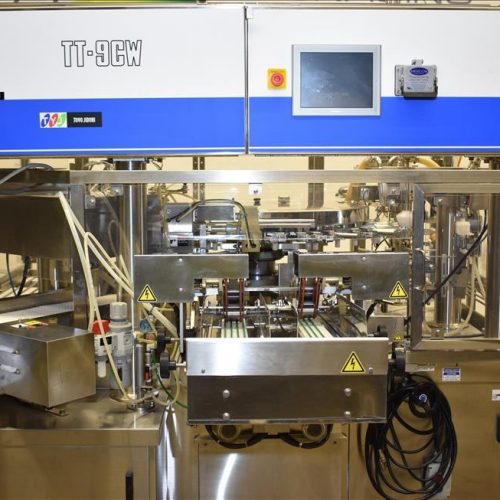

Toyo Jidoki Model TT9CW Rotary Preformed Pouch Machine. Capable of speeds from 30-90 pouches/minute dependent on fill volume. Pouch Sizes of 80mm - 150mm Wide, 130mm - 255mm Length. Fill volume range up to 500 cc. Fills Solid, Liquid, and Powder Products. Currently set up to do 10 oz pouch. Capable of running flat or stand up pouches. Duplex 2-up operation. Turret stations consist of: pouch pick and place into turret clips, pouch top opener, pouch bottom opener, pressure product fill, piston pump fill (19 mm diameter nozzles.), two stage heat seal stations, seal quench, and pouch discharge. Discharge conveyor includes hoses for washing completed products. Features Positive shut off nozzles. Allen Bradley Compact Logix PLC Controls. Last used on pouched alcoholic beverage products. 480 V, 3 Ph, 60 Hz.
http://www.youtube.com/watch?v=8bTAykSyIWw
