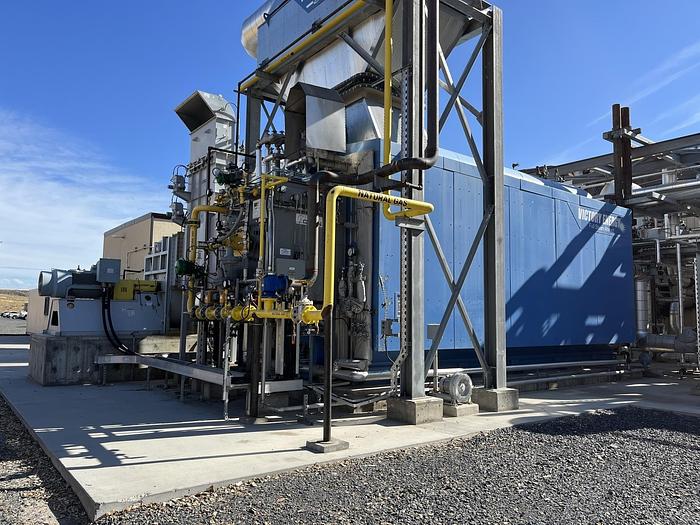

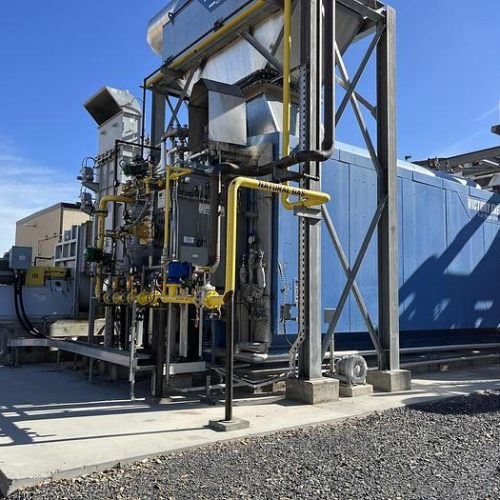

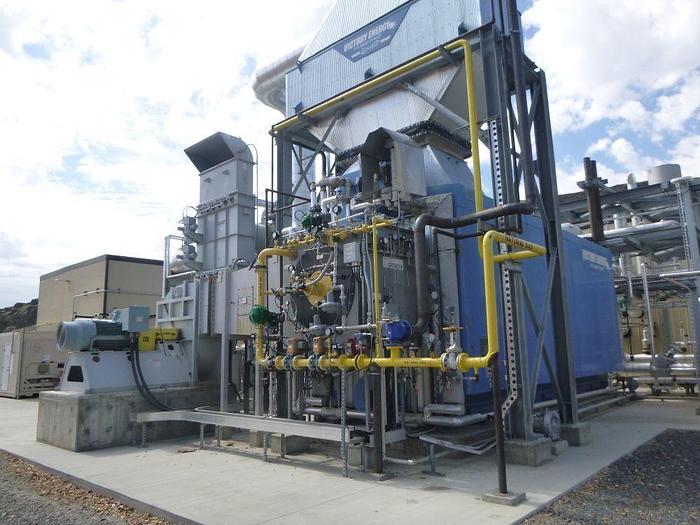

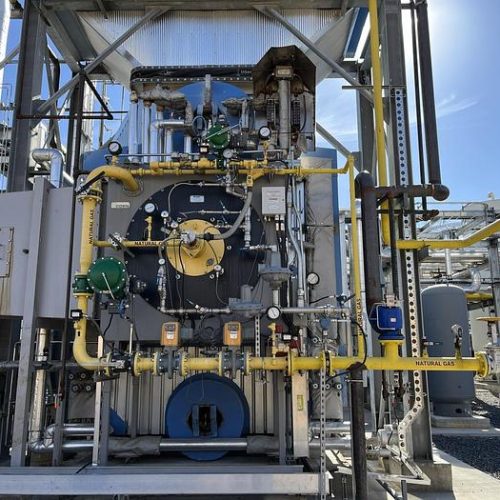

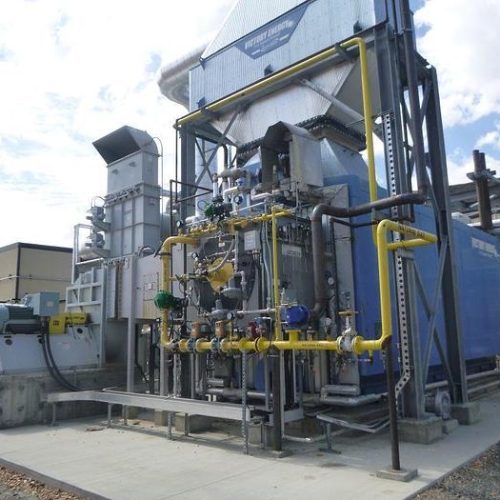

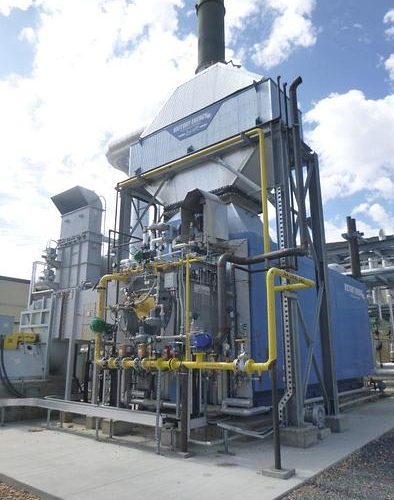

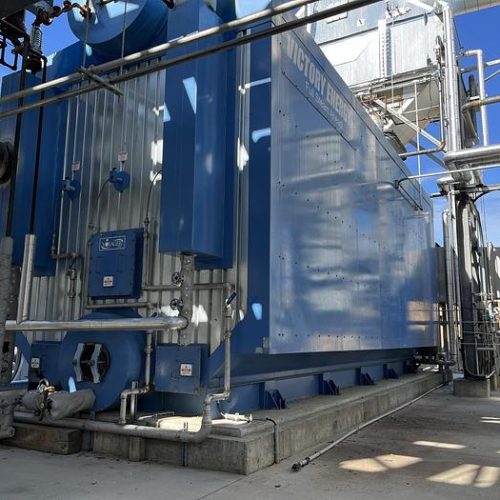

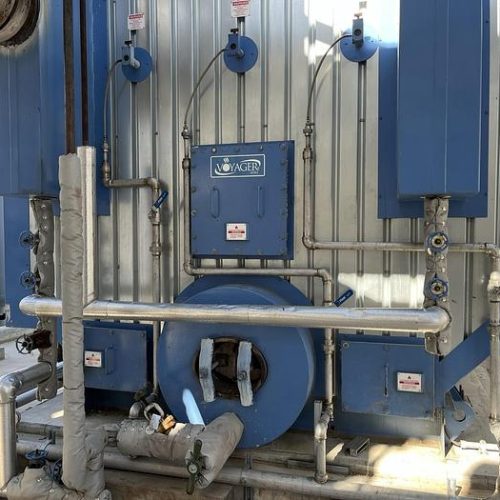

Victory Energy Voyager Series Model VS-5-78SP SH 90,000 LBS/HR PPH Natural Gas Package Boiler
| Loeb # | 200149 | Model | VOYAGER SERIES VS-5- |
|---|---|---|---|
| OEM | |||
| Year | 2018 | Serial | |
| Electrical | Location | Washington | |
| Condition | As is | Size | n/a |
| Lease for only | n/a / mo. | Rent for only | N/A |
Victory Energy Voyager Series Model VS-5-78SP SH 90,000 LBS/HR PPH Natural Gas Package Boiler. In operation only 1 year.
Capacity 90,000 lb/hr Saturated Steam
Design Pressure: 950 PSIG
Operating Pressure: 800 PSIG
Operating Temperature: 863°F SH Steam at the NRV outlet
Feedwater Temperature: 227°F to Economizer Inlet
Primary Fuel: Natural Gas
Complete economizer system
Furnace Radiant Heating Surface 889 Sq. Ft.
Boiler Convective Heating Surface 6,455 Sq. Ft.
Total Heating Surface 7,344 Sq. Ft.
Superheater Surface 980 Sq. Ft.
Furnace Volume 1,633 Cu. Ft
Overall Width 8’- 10”
Average Height 8’- 6”
Furnace Length 21’- 11”
Overall height: 50 Feet
Drums Submerged arc automatic welded and stress relieved with radiographed welded seams
Drum material is SA-516 Gr. 70
Tubes are rolled and expanded into the drum
Mud Drum is provided with a 12” x 16” hinged manway access in each drum head
Steam Drum is provided with a 12” x 16” hinged manway access in each drum head
All tubes enter the drum radially with full parallel bearing through the drum plate
All tubes are full diameter tubes with no swaging
Front Wall 2” O.D., 0.135” M.W., SA-178 A
Rear Wall 2” O.D., 0.135” M.W., SA-178 A
Furnace Floor, Sides & Roof 2” O.D., 0.135” M.W., SA-178 A
Convection: 2” O.D., 0.120” M.W., SA-178 A
Outer Side Wall: 2” O.D., 0.135” M.W., SA-178 A
Superheater: 2” O.D., 0.180” M.W., SA-213TP304H

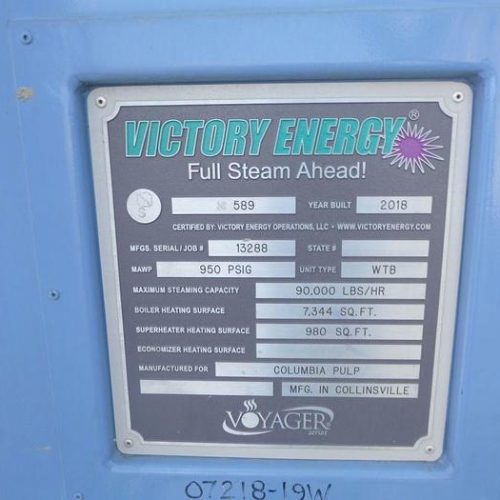

National board # 589
